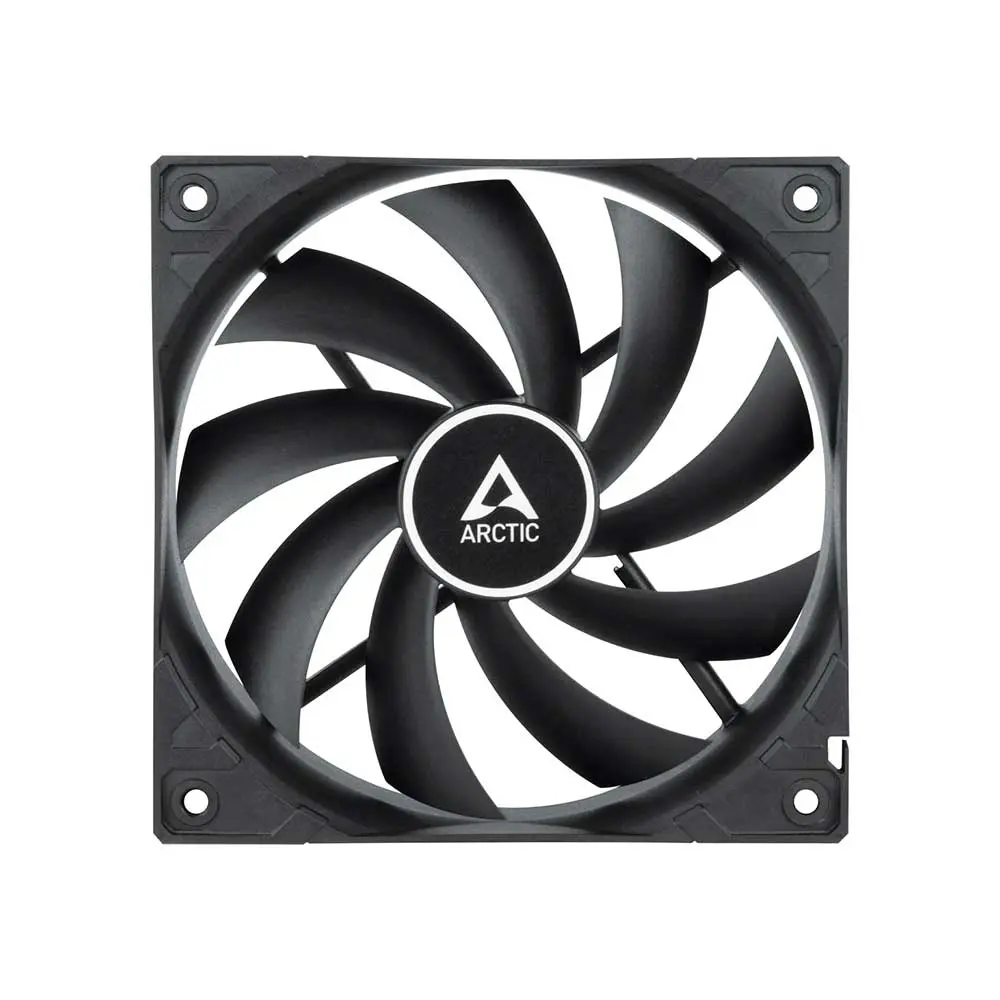

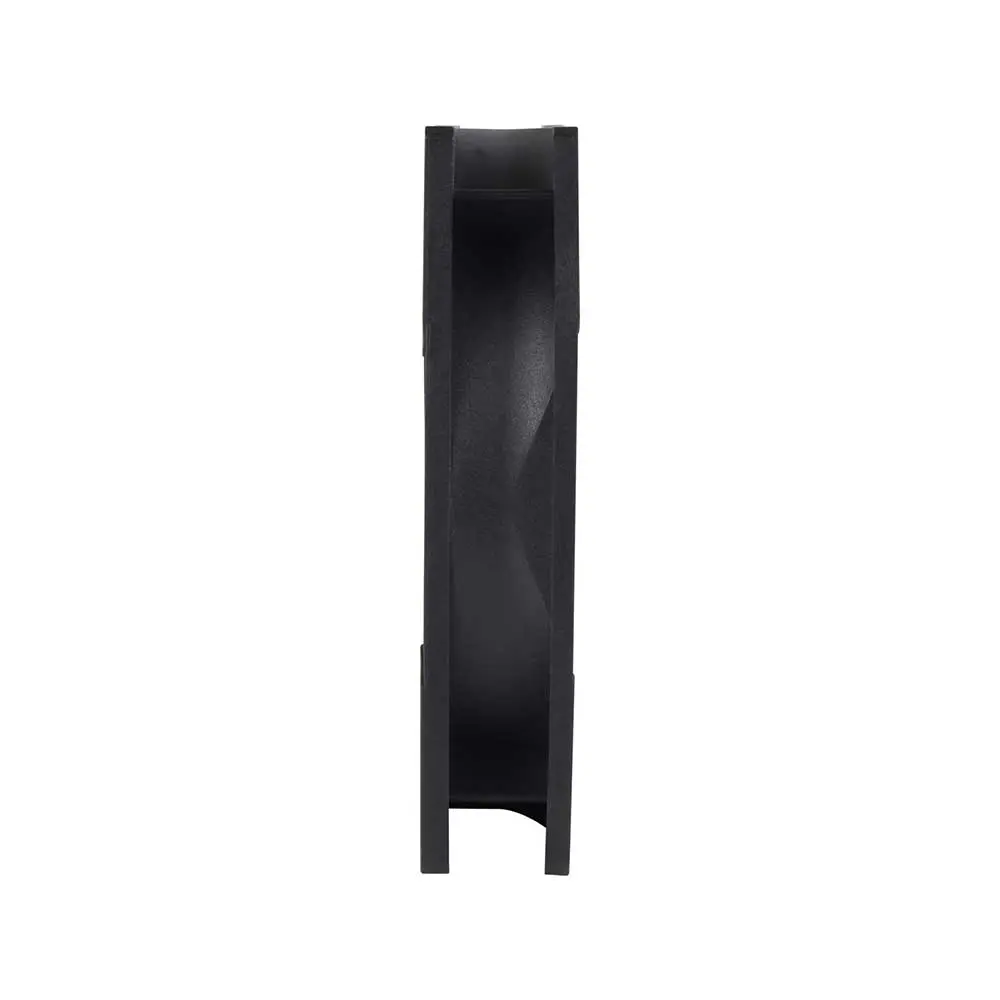

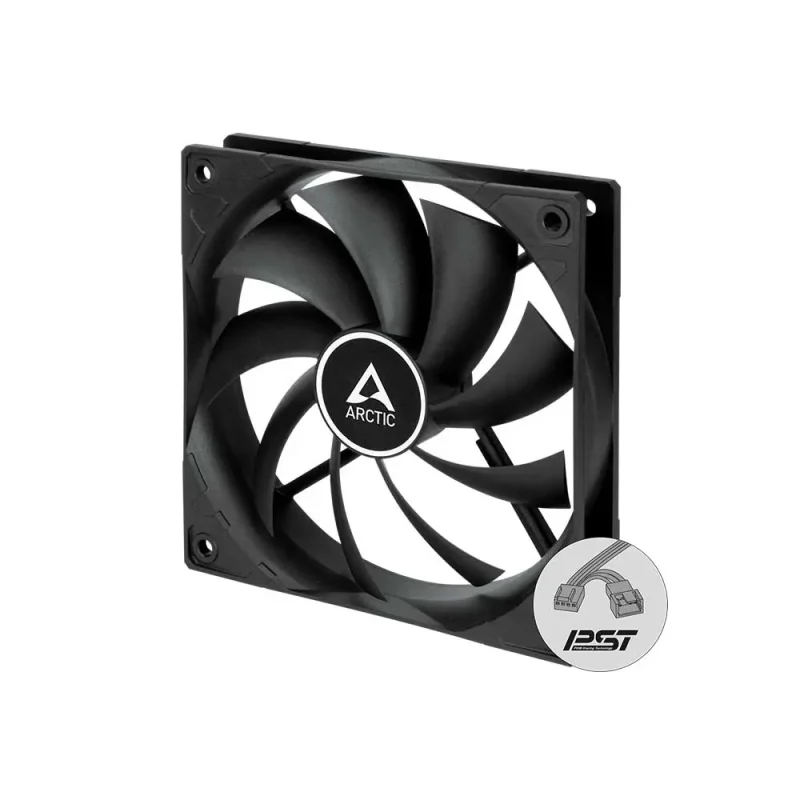

Arctic F12 Pwm Pst Cabinet Fan Single Pack Black
Even at low speeds the operating sound of the new
Arctic
F12 PWM PST motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter.
| General Specifications | |
| Performance | |
| Fan Speed | 230—1350 rpm |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure |
1 mmH 2 O |
| Noise Level | 0.3 Sone |
|
Fan |
|
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Electric Characteristics | |
| Typical Voltage | 12V DC |
| Starting Voltage | 6V |
| Current | Voltage | 0.12 A | 12 V DC |
| Cable Length | 400mm |
| RGB Specifications | |
| LEDs | 12 A-RGB LEDs |
| Connector | 3-Pin 5 V-DI-GND Connector |
| Current / Voltage | 0.4 A/5 V |
| Cable | 400 mm Cable with 80 mm Sharing Cable, Black |
| Size & Weight | |
| Length | 120mm |
| Width | 120mm |
| Height | 25mm |
| Weight | 109g |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
|
Brand |
Arctic |
|
Fan Size |
120 mm |
|
Warranty |
6 Years |
