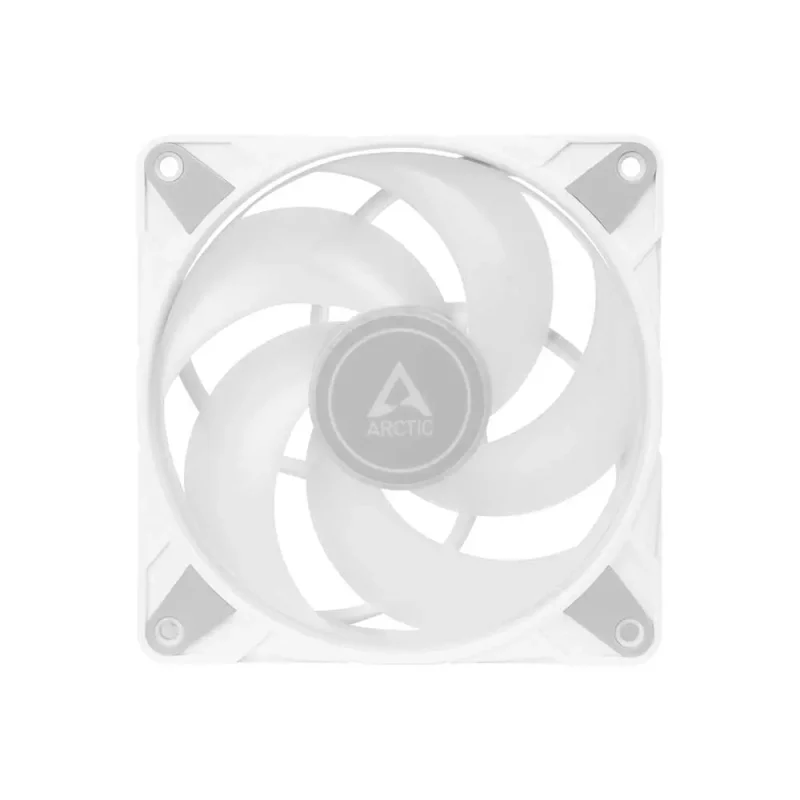

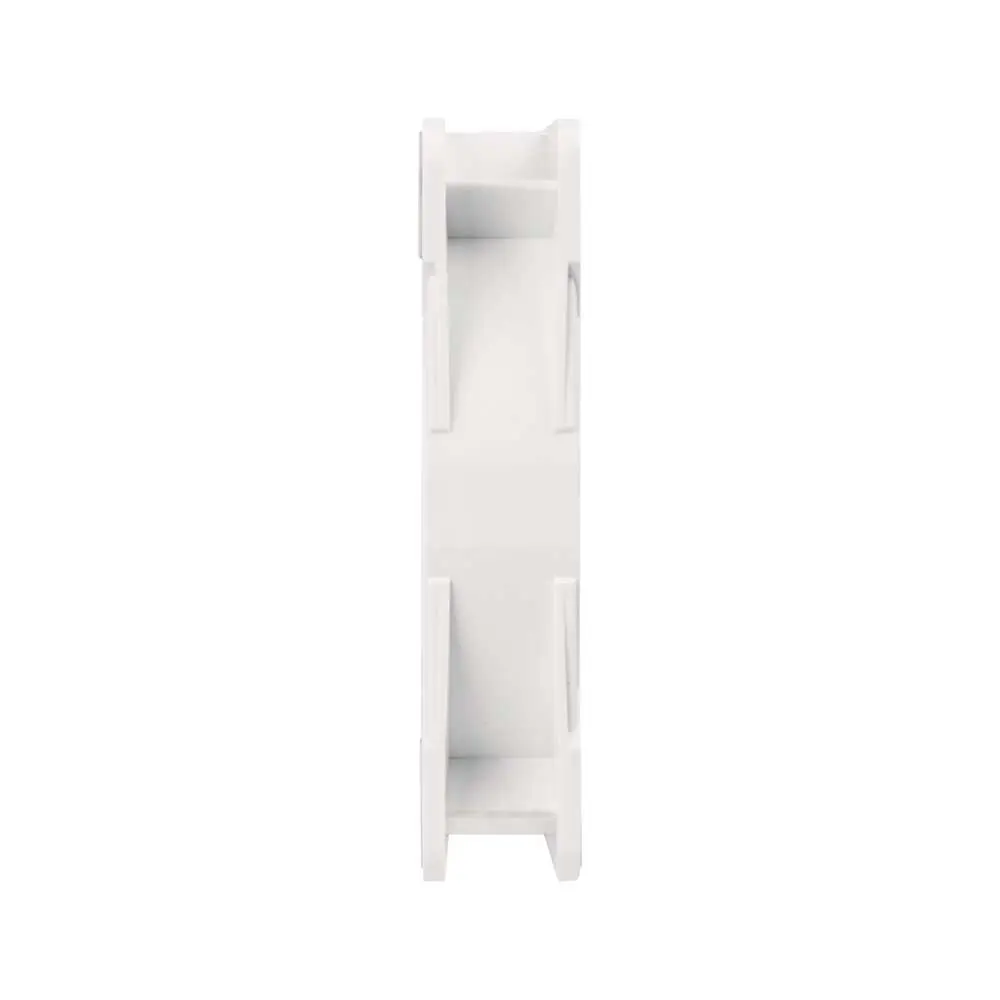

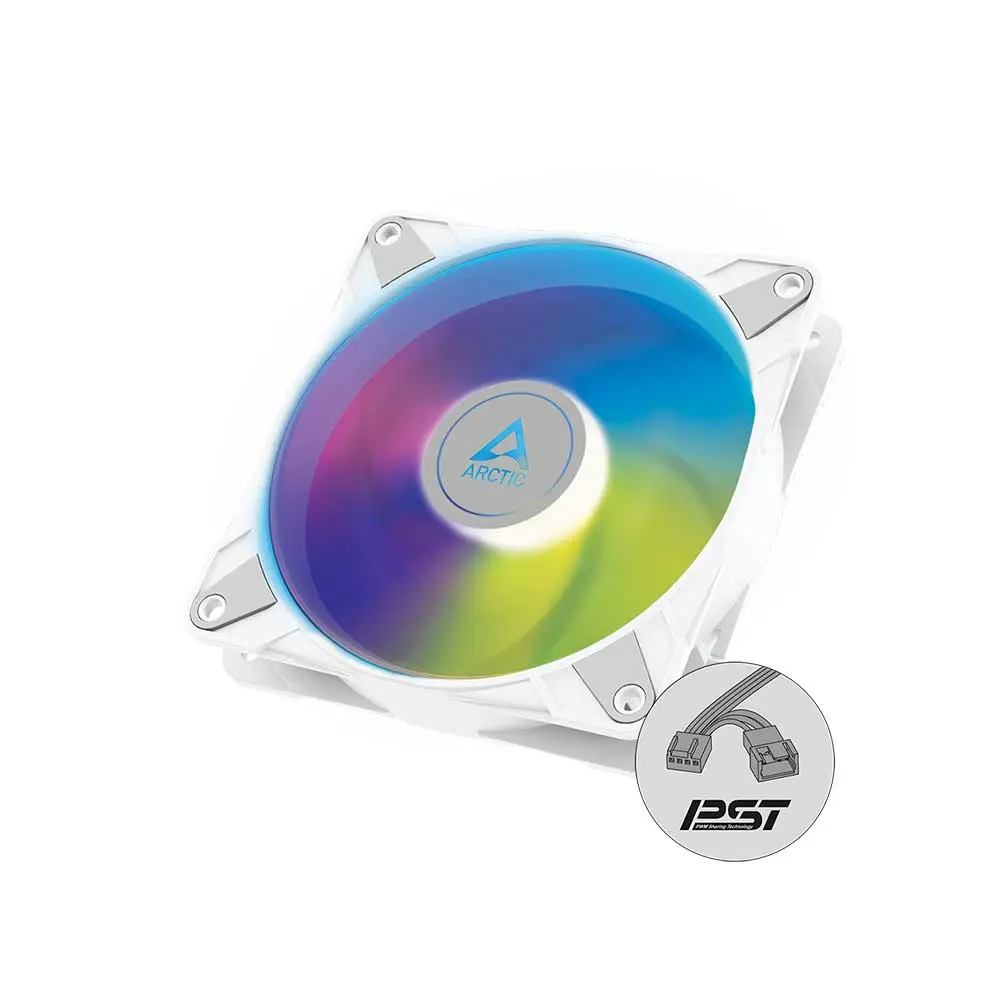

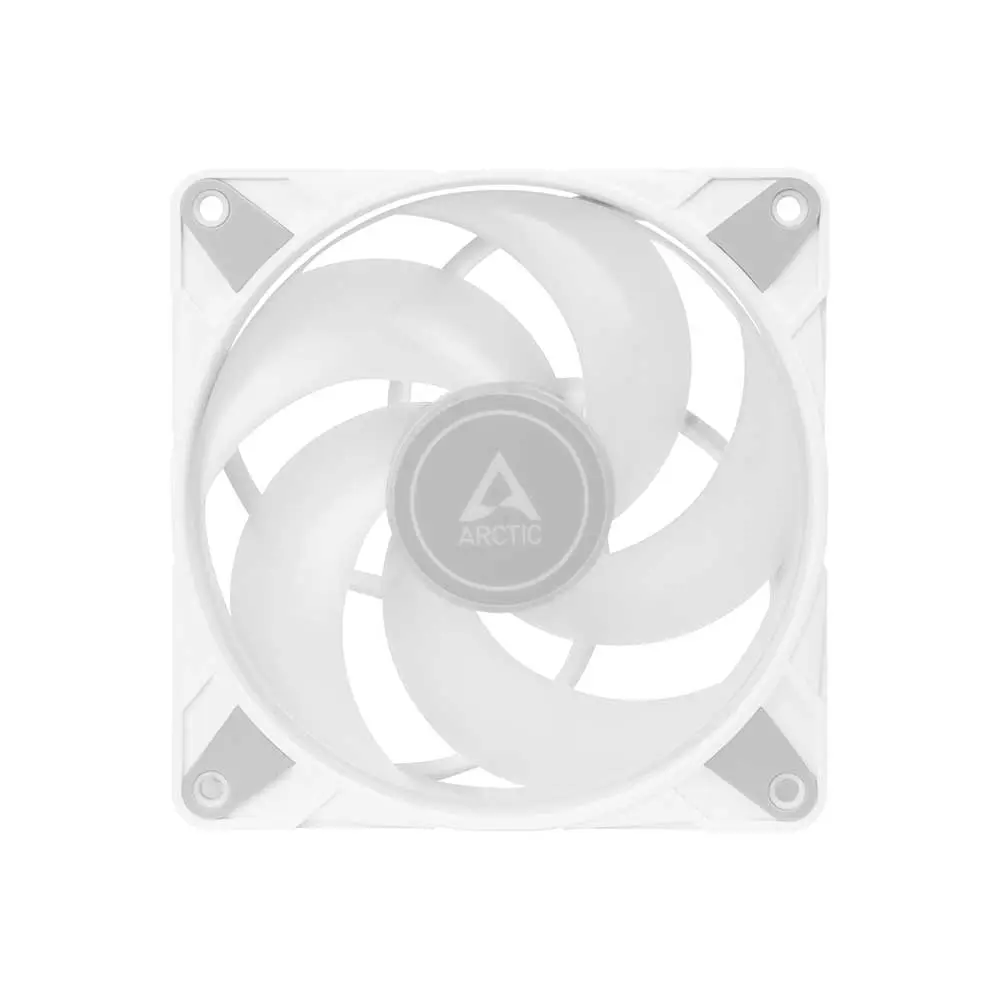

Arctic P14 Pwm Pst Argb Cabinet Fan Single Pack White
The
Arctic
P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The
fan
can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
| General Specifications | |
| Performance | |
| Fan Speed | 200—1900 rpm PWM Controlled (0 rpm below 5% PWM) |
| Airflow | 68.90 cfm | 117.06 m³/h |
| Static Pressure | 2 mmH2O |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Electric Characteristics | |
| Typical Voltage | 12V DC |
| Starting Voltage | 5V |
| Current | Voltage | 0.17 A | 12 V DC |
| Cable Length | 400mm |
| RGB Specifications | |
| LEDs | 12 A-RGB LEDs |
| Connector | 3-Pin 5 V-DI-GND Connector |
| Current / Voltage | 0.4 A/5 V |
| Cable | 400 mm Cable with 80 mm Sharing Cable, Black |

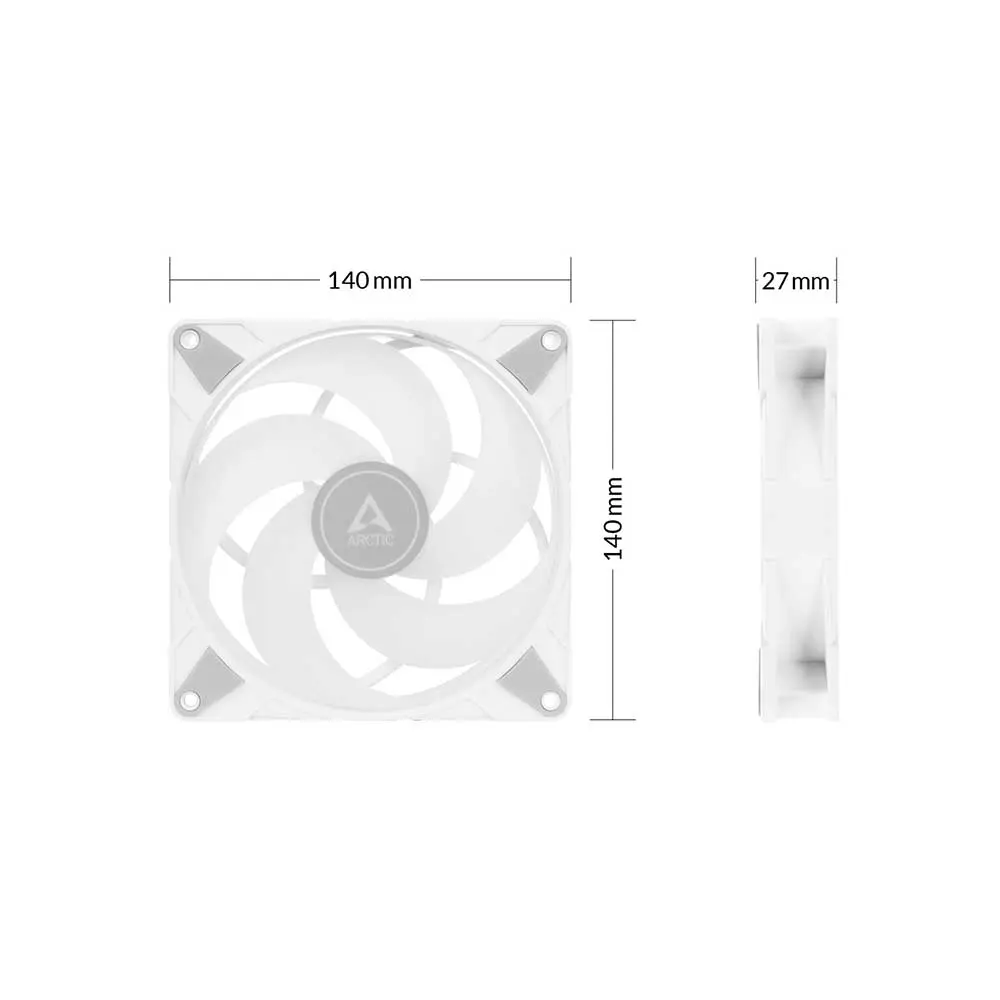

| Size & Weight | |
| Length | 140mm |
| Width | 140mm |
| Height | 27mm |
| Weight | 225g |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
|
Brand |
Arctic |
|
Fan Size |
140 mm |
|
Lighting |
ARGB |
|
Warranty |
6 Years |
