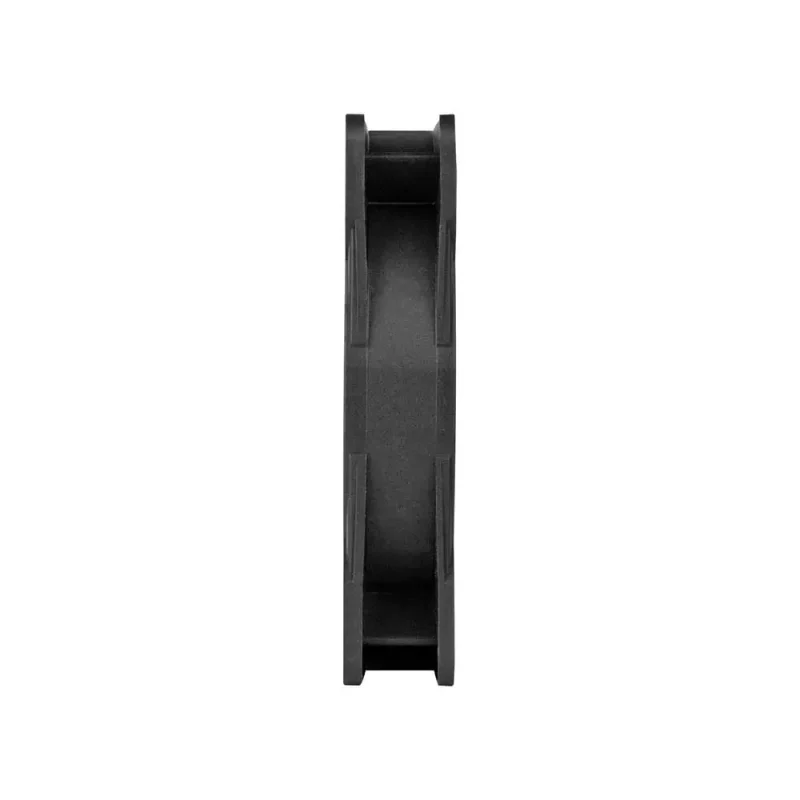

Arctic P14 Max 140mm High Speed Pwm Cabinet Fan
Building up on the success of the
Arctic
P14 Max 140mm PWM Cabinet
Fan
, the P14 Max extends the controllable speed to an impressively wide range from 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.
| General Specification | |
| Dimensions | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 245g |
| Operating Ambient Temperature | 0–40 °C |
| Fan Specifications | |
| Fan Speed | 400—2800 rpm (PWM controlled), 0 rpm below 3 % PWM |
| Airflow | 95,00 cfm | 161,40 m³/h |
| Static Pressure | 4,18 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Startup Voltage | 3.9 V DC |
| Current | 0.35 A |
| Cable Length | 400mm |
| Connector | 4-Pin PWM Connector |
| Width | 167mm |
| Height | 34mm |
| Length | 167mm |
| Weight | 0.303 Kg |
| Warranty | 6 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
|
Brand |
Arctic |
|
Fan Size |
140 mm |
|
Warranty |
6 Years |
