Name: ASUS ProArt X870E-CREATOR WiFi DDR5 Motherboard
Brand: ASUS
Price: 64000 INR
Availability: OutOfStock

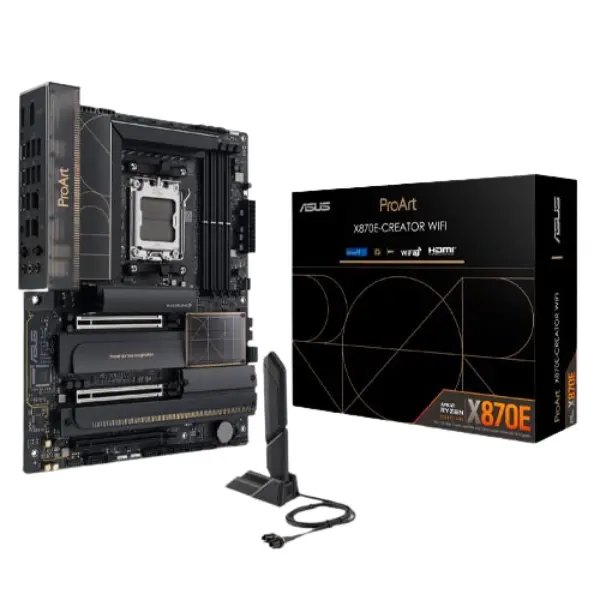

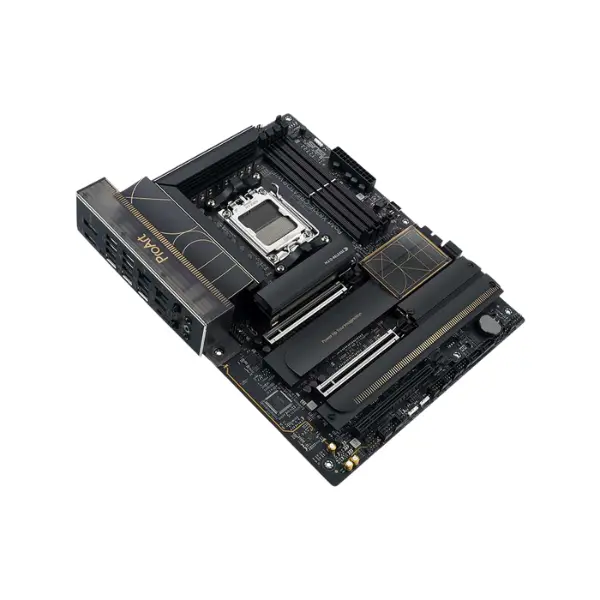

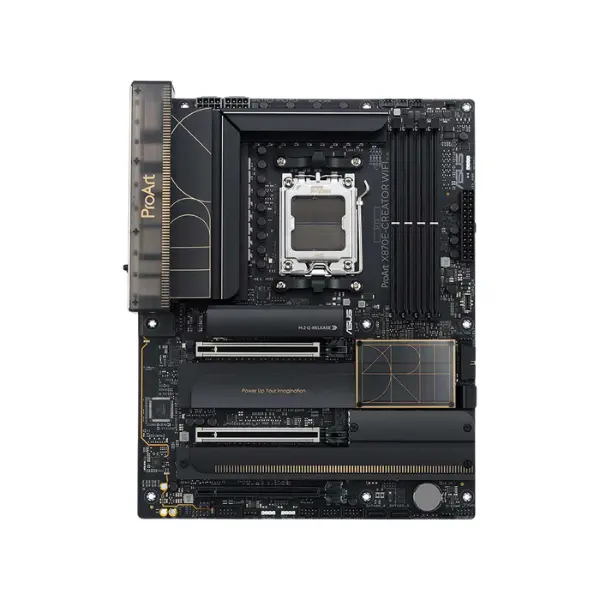

ASUS ProArt X870E-CREATOR WiFi DDR5 Motherboard

The Asus ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Brand	ASUS
Compaitability	AMD
CPU Type Support	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Chipset	AMD X870E
Number of Memory Slots	4 x DIMM slots, max. 192GB, DDR5
Maximum Memory Supported	192 GB
Channel Supported	Dual Channel
Expansion Slots	2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes), 4 x DIMM slots, max. 192GB, DDR5, AMD Ryzen™ 8500 & 8300 Series Desktop Processors, AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*, When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
Storage Supported	AMD Ryzen™ 8000 Series Desktop Processors, AMD Ryzen™ 9000 & 7000 Series Desktop Processors, AMD X870E Chipset, M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)., M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)., M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*, M.2_2 slot is not supported, Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet Lan Chipset	1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Unique de-pop circuit
OS Supported	Windows 11
Wi-Fi 7*	Yes

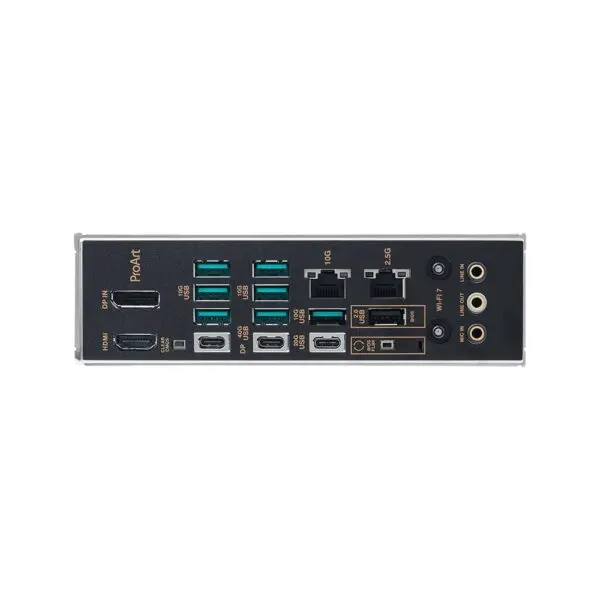

Back Panel I/O Ports	2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years
