DeepCool Morpheus Atx+ Modular Airflow Cabinet (R-MORPHEUS-BKAPA1-G-1)

DeepCool Morpheus Atx+ Modular Airflow Cabinet (R-MORPHEUS-BKAPA1-G-1)

Modularity has a new face, and it comes to us in the form of

DeepCool

Morpheus Atx+ Modular Airflow

Case

internally reconfigurable ATX+ chassis: the MORPHEUS. With incomparable compatibility and a spacious layout, the MORPHEUS is the best option for the DIY modder or the casual PC enthusiast.

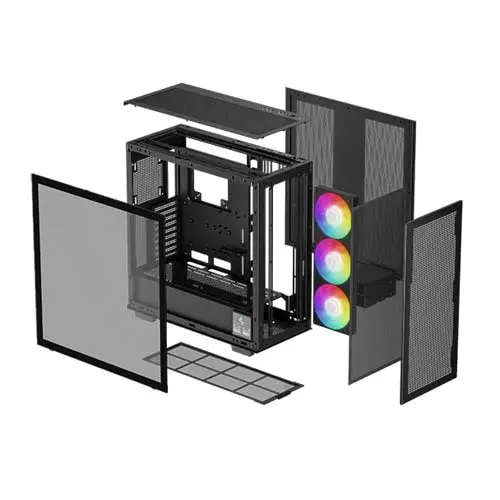

A NEW TAKE ON MODULARITY


If sticking to the same system layout for years sounds boring, the MORPHEUS is exactly what you are looking for. Easily switch between the classic single chamber configuration and the dual chamber layout with a simple switch of a few parts. Everything necessary to shift between the two configurations is included, as well as a vertical GPU mount.

AIRFLOW AT ANOTHER LEVEL


High airflow panels surround the MORPHEUS case from the front, right, top, bottom, rear, and even the top of the PSU shroud; there will be no shortage of airflow provided to the high-powered heat-generating components inside. High-flow mesh filters are included for the front, top, and bottom panels and will keep dust out.

EXTENSIVE COOLING CAPABILITY


Fan options are unparalleled, with the ability to mount thirteen 120mm or 140mm fans or go to the extreme and add up to six 200mm fans into the conversation. The highly modular fan rails make these configurations a reality.

The MORPHEUS can also support up to three 420mm radiators simultaneously. 420mm radiators can be mounted to the front, top, bottom, and side of the motherboard tray.

A TRINITY OF FANS!


A set of highly convenient trinity fans come mounted inside the MORPHEUS: three beautifully bright 140mm ARGB fans are united into a single 420mm unit. The trinity of fans only require the wiring of a single set of PWM and ARGB cables, greatly reducing the amount of cable management.

MAXIMUM COMPATIBILITY


The ATX+ form factor of the MORPHEUS case guarantees compatibility with a large range of components. This ATX+ DeepCool case supports E-ATX motherboards while also having compatibility for GPUs up to 480mm in length, 195mm tall CPU coolers in the single chamber configuration, and multiple 420mm radiators.

DUAL REAL-TIME DIGITAL DISPLAY


Save precious space on your desktop by moving the monitoring of temperatures and usage of your CPU and GPU onto the built-in display that is included with the MORPHEUS case. A simple-to-install app and an open USB 2.0 header will get the dual display up and running.

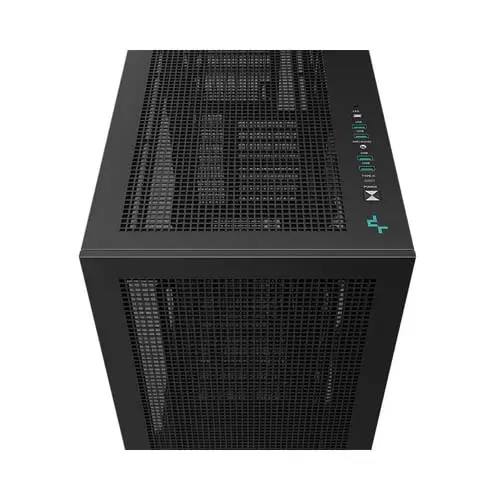

A BEVY OF I/O PORTS


With four USB 3.0 ports, a Type-C port, and a hybrid audio port, there is no shortage of devices that can be accessed from the top front I/O panel. There is also an LED cycle button to control the built-in ARGB controller, an HDD activity LED, and a Power button to round out the front I/O.

BITS!


Add a bit of a personal touch with the fun rubber square bits! Included as a fun addition, the pixels can be used with majority of the mesh panels of the MORPHEUS case. Leave messages for others, add custom logos, or create your own 8-bit character!

Technical Details

Brand : DeepCool

Model : R-MORPHEUS-BKAPA1-G-1

Specifications


Product Dimensions : 528×250×551mm(L×W×H)

Net Weight : 15.5Kg

Materials : ABS+SPCC+Tempered Glass

Motherboard Support : Mini-ITX / M-ATX / ATX / E-ATX

Front I/O Ports : USB3.0×4、Audio×1、Type-C×1

3.5″ Drive Bays : 2

2.5″ Drive Bays : 2+1

Expansion Slots : 9 Slots

Pre-Installed Fans : Side：1×420mm ARGB

Fan Support


Front: 3×120 / 3×140 / 2×180 / 2×200mm

Top: 3×120 / 3×140 / 2×180 / 2×200mm

Side: 3×120 / 3×140mm

Bottom: 3×120 / 3×140 / 2×180 / 2×200mm

PSU Shrouded: 3×120 / 3×140mm (Single Chamber)

Rear: 1×120 / 1×140mm (Single Chamber)

Radiator Support


Front: 120/140/240/280/360/420mm

Top: 120/140/240/280/360/420mm

Side: 120/140/240/280/360/420mm (Dual Chamber)

Bottom: 120/140/240/280/360/420mm

Rear: 120/140mm (Single Chamber)

CPU Cooler Height Limit


195mm (Single Chamber)

132mm (Dual Chamber)

GPU Length Limit : 480mm

Power Supply Type : ATX PS2（maximum length: 180mm）
