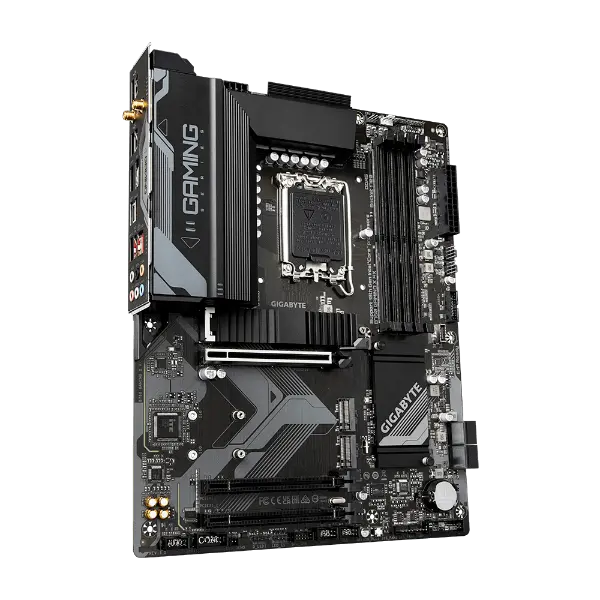

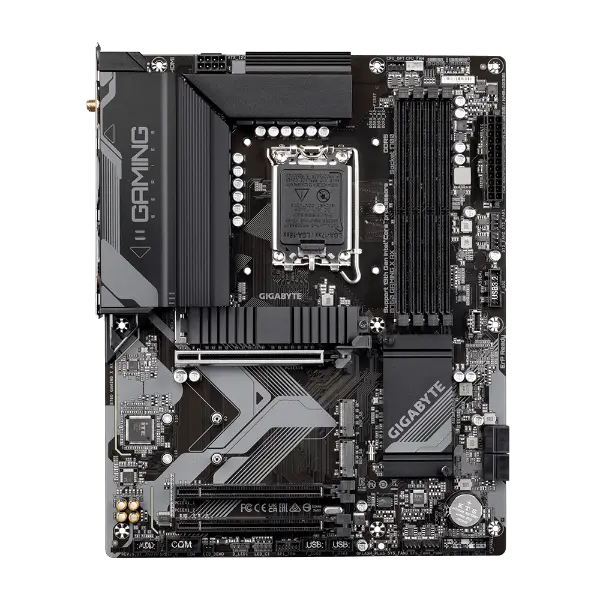

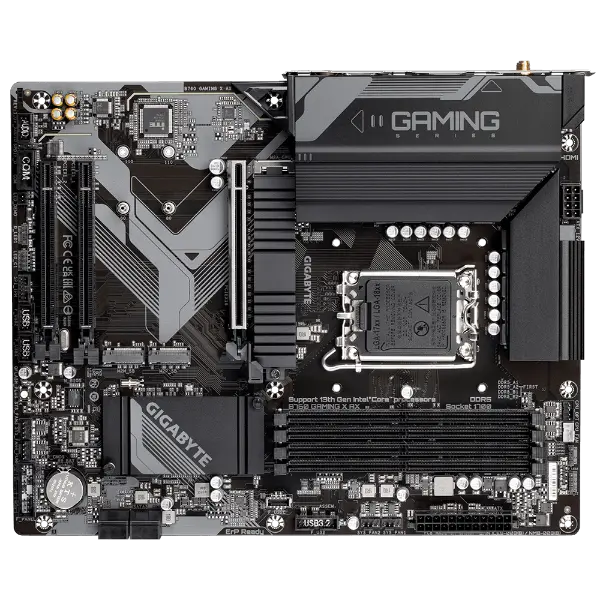

Gigabyte B760 GAMING X​ AX DDR5 Motherboard

Gigabyte B760 GAMING X​ AX DRR5 Motherboard



Performance

8 Solid Pin CPU Power Connector

Advanced Thermal Design



• • Fully Covered MOSFET Heatsinks



• • Thermal Conductivity Pad



• • M.2 Connector with Thermal Guard



• • Integrated I/O Shield



M.2 EZ-Latch Plus

Full PCI Express 4.0 Design



• • 1*PCIe 4.0 x16 Slot



• • 3*PCIe 4.0 x4 M.2 Connector with One Thermal Guard



8+1+1 Phases Hybrid Digital VRM Design



• • 60A DrMOS*



• • PCIe 4.0 Ready PCB



• • Premium Choke and Capacitor



Support 13th and 12th Gen. Intel® Core™ Processors

Dual Channel DDR5, 4 DIMMs

Front USB 3.2 Gen 2 Type-C® for Connecting Devices

PCIe EZ-Latch

Multi-key



• • Multiple function set by BIOS



• • Reset/RGB Switch/Direct to BIOS/Safe Mode







UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN

GIGABYTE Motherboards’ Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Brand	Gigabyte
Form Factor	ATX
Compaitability	Intel
CPU Type Support	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processorss
Chipset	Intel B760 Chipset
Number of Memory Slots	4 x DDR5 DIMM
Max Memory Support	192 GB
Memory Type Supported	DDR5
Channel Supported	Dual Channel
Expansion Slots	1 x PCI Express 4.0
Storage Supported	1 x M.2 connector, 2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode), 4 x SATA3 6.0 Gb/s
Ethernet Cable Support	Realtek 2.5Gb Ethernet port
USB Ports	1 x USB Type-C
HDMI	1 x HDMI
LED Lighting	RGB
Audio	Realtek® Audio CODEC Support for S/PDIF Out 2/4/5.1/7.1-channel High Definition Audio
I/O (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

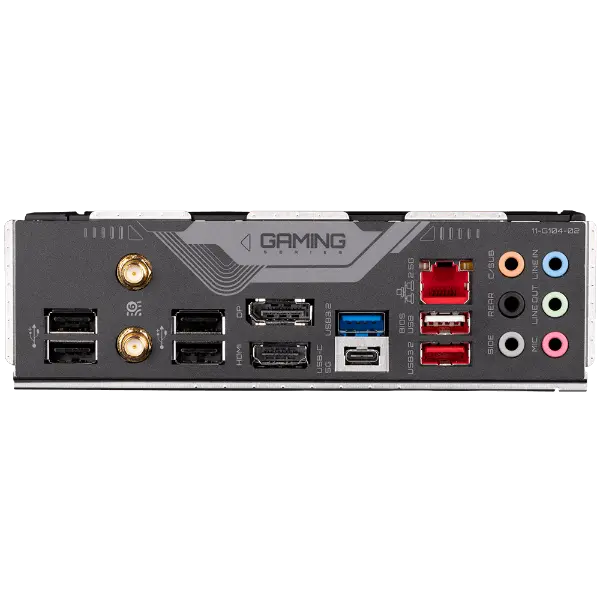

I/O (Rear)	1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks
I/O Controller	iTE® I/O Controller Chip
