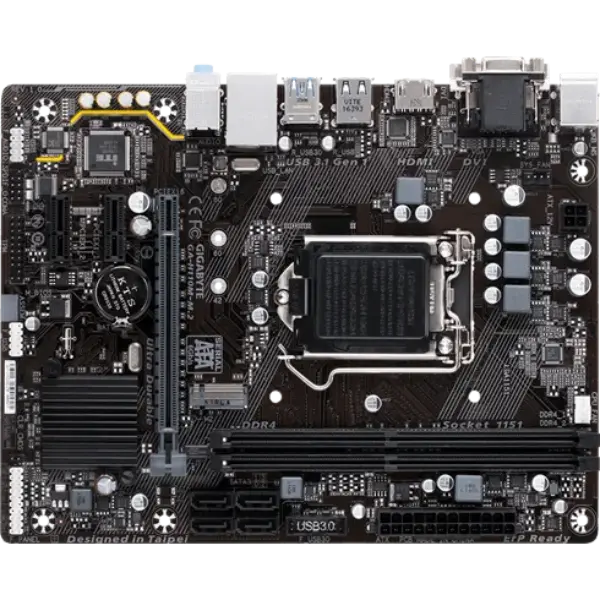

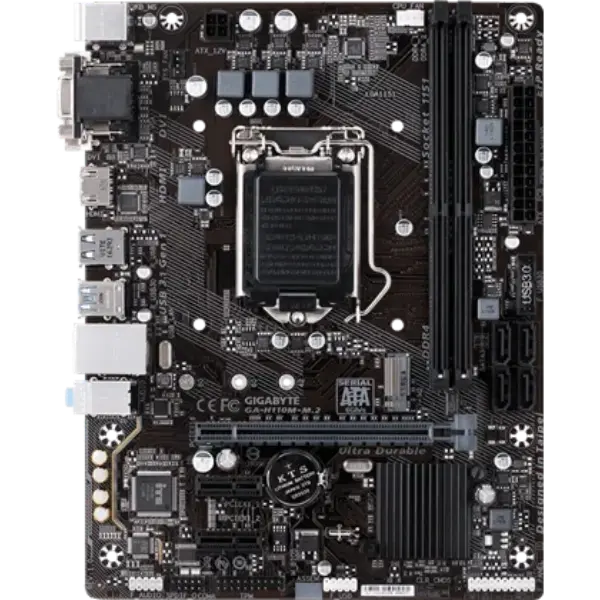

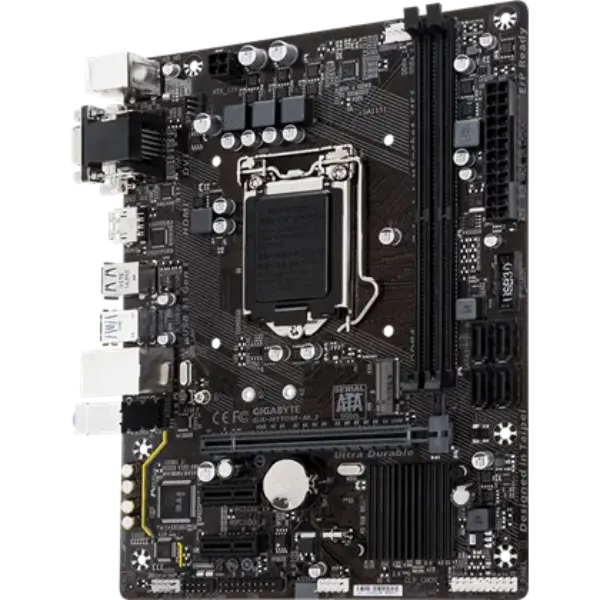

GIGABYTE H110M-M.2 ATX Motherboard
The GIGABYTE H110M-M.2 is a compact and reliable Micro-ATX motherboard designed for Intel 6th and 7th Generation Core processors. It supports DDR4 memory up to 32GB, features an M.2 slot for high-speed SSD storage, Gigabit LAN, HDMI and D-Sub display outputs, and multiple USB connectivity options. It is well suited for office PCs, business desktops, entry-level systems and general-purpose computing.
- Supports 7th / 6th Generation Intel® Core™ Processors
- Dual Channel DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen2 x2 & SATA mode support
- 8-channel HD Audio with High Quality Audio Capacitors
- Audio Noise Guard with LED Trace Path Lighting
- HDMI 1.4, DVI-D, D-sub ports for multiple display
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- All new GIGABYTE™ APP Center, simple and easy use
- Support Intel® Small Business Basics
| Platform | INTEL |
| Socket | LGA1151 |
| Cpu Type | Support for 7th/6th Generation Intel Core™ i7 processors/Intel Core i5 processors/Intel® Core i3 processors/Intel Pentium processors/Intel Celeron® processors in the LGA1151 package For 7th Generation Intel® Core™ processors support need to update the latest BIOS. L3 cache varies with CPU |
| Chipset | Intel® H110 Express Chipset |
| Memory Speed | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules To support 2400 MHz or XMP memory, you must install a 7th generation processor. |
| Max Memory Support | 32 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Graphics Port | 1x HDMI, 1x DisplayPort |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slots conform to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |

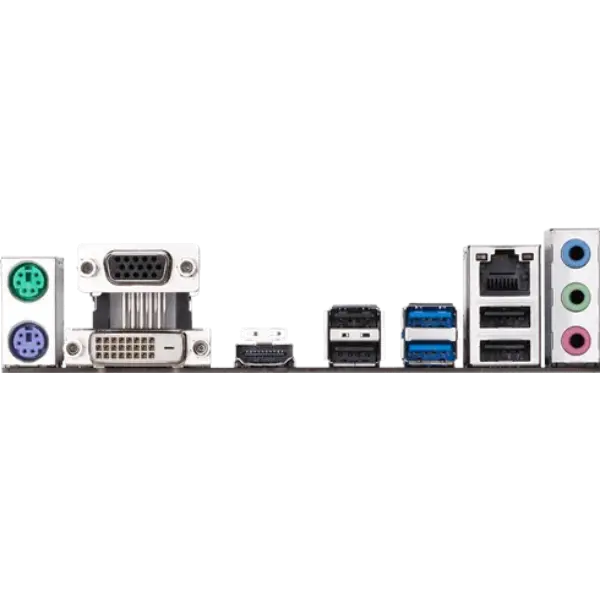

| Back Panel I/O Ports | 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
| Warranty | 3 Years |
