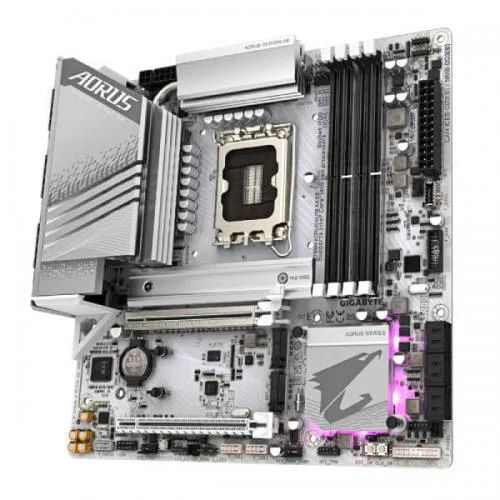

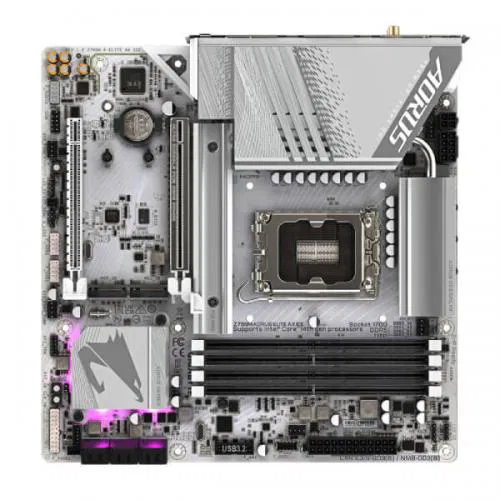

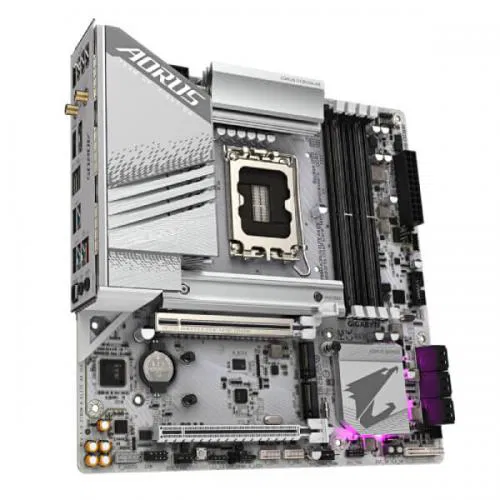

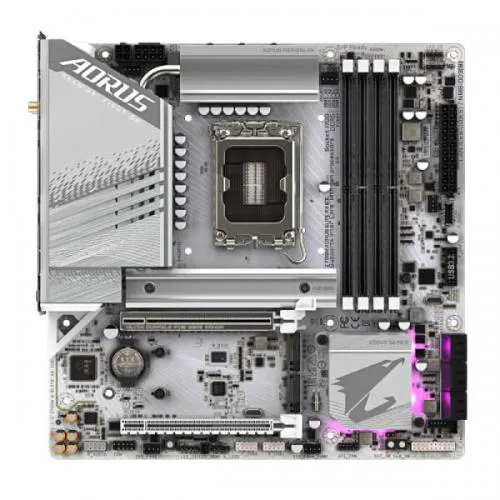

Gigabyte Z790M Aorus Elite AX Ice DDR5 LGA1700 Micro ATX Motherboard

• • GA1700 sockLet: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

• • L3 cache varies with CPU

• • Intel Z790 Express Chipset

• • Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

• • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• • Dual channel memory architecture

• • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• • Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

• • 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports.

• • 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60

    * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

• • Realtek ALC1220 CODEC

* The back panel line out jack supports DSD audio.

• • High Definition Audio

• • 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• • Support for S/PDIF Out

• • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• • Intel Wi-Fi 6E AX211 (PCB rev. 1.0)

• • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    BLUETOOTH 5.3

    Support for 11ax 160MHz wireless standard

• • Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

• • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    BLUETOOTH 5.3

    Support for 11ax 160MHz wireless standard

• • (Actual data rate may vary depending on environment and equipment.)

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

• • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

• • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

• • 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

• • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support

• • 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

• • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

Chipset+2 USB 2.0 Hubs

:

• • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

• • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• • 1 x 24-pin ATX main power connector

• • 1 x 8-pin ATX 12V power connector

• • 1 x 4-pin ATX 12V power connector

• • 1 x CPU fan header

• • 1 x water cooling CPU fan header

• • 3 x system fan headers

• • 1 x system fan/water cooling pump header

• • 2 x addressable LED strip headers

• • 2 x RGB LED strip headers

• • 3 x M.2 Socket 3 connectors

• • 6 x SATA 6Gb/s connectors

• • 1 x front panel header

• • 1 x front panel audio header

• • 1 x USB Type-C® header, with USB 3.2 Gen 2 support

• • 1 x USB 3.2 Gen 1 header

• • 2 x USB 2.0/1.1 headers

• • 2 x Thunderbolt™ add-in card connectors

• • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• • 1 x serial port header

• • 1 x reset button

• • 1 x Q-Flash Plus button

• • 1 x Clear CMOS button

• • 1 x reset jumper

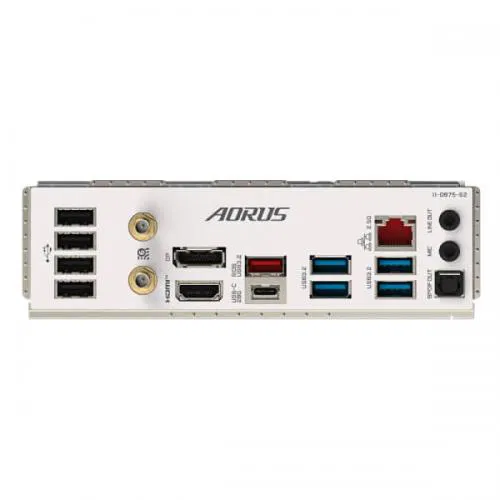

• • 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support

• • 1 x USB 3.2 Gen 2 Type-A port (red)

• • 4 x USB 3.2 Gen 1 ports

• • 4 x USB 2.0/1.1 ports

• • 2 x SMA antenna connectors (2T2R)

• • 1 x HDMI 2.0 port

• • 1 x DisplayPort

• • 1 x RJ-45 port

• • 1 x optical S/PDIF Out connector

• • 2 x audio jacks

• • iTE I/O Controller Chip

• • Voltage detection

• • Temperature detection

• • Fan speed detection

• • Water cooling flow rate detection

• • Fan fail warning

• • Fan speed control

• • * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• • 1 x 256 Mbit flash

• • Use of licensed AMI UEFI BIOS

• • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• • Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

• • Norton Internet Security (OEM version)

• • LAN bandwidth management software

• • Support for Windows 11 64-bit

• • Support for Windows 10 64-bit

• • Micro ATX Form Factor; 24.4cm x 24.4cm

*** Features, Price, Specifications are subject to change without notice.
