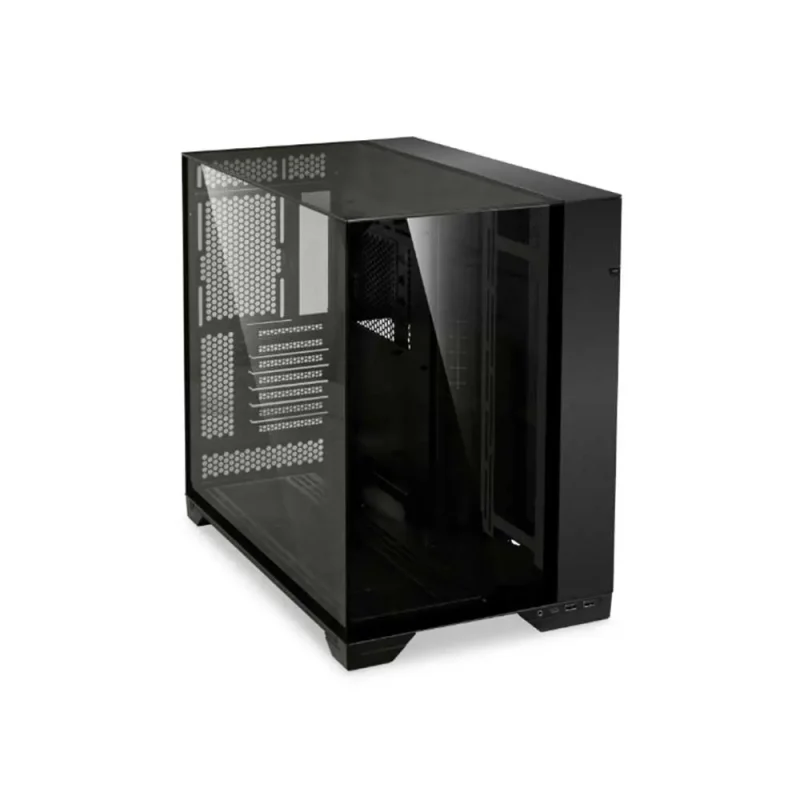

Lian Li O11 Vision E-Atx Full Tower Cabinet Black
The
Lian Li
O11 Vision not only boasts a striking appearance but also doesn’t compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 × 360 + 1 × 240 radiators, ensuring efficient thermal control.

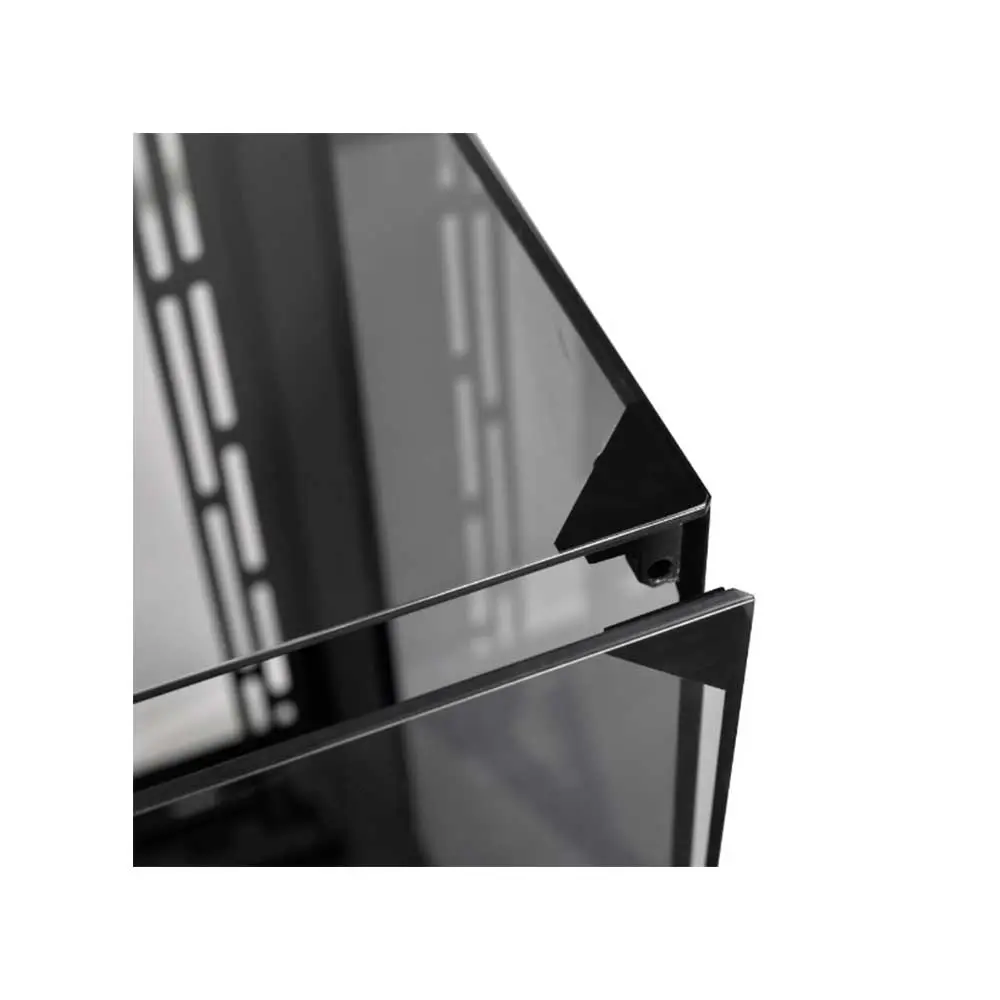

- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 × 360mm radiators + 1 × 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
|
Case Type |
Tower Case |
| Model | O11VX |
| Color | BLACK |
| Dimension | (D) 480mm x ( W ) 304mm x (H) 464.5mm |
| Material | Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum |
| Motherboard Support | E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX |
| Expansion Slot | 6+1 |
| Storage | Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD |
| GPU Length Clearance | 455mm (Max.) |
| CPU Cooler Height Clearance | 167mm (Max.) |
| PSU Support | ATX (Under 220mm) |
| Fan Support | Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm |
| Radiator Support | Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm |
| I/O Ports | 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio |
| Dust Filter | Bottom × 1 |
| Warranty | 1 Year |
| Note** | **Prices, Specifications & Feature are subject to change without notice |
|
Brand |
Lian Li |
|
Case Type |
Full Tower |
|
Radiator Support |
360mm |
|
Motherboard Support |
ATX, EATX, Micro ATX, Mini ITX |
|
Color |
Black |
|
Warranty |
1 Year |
