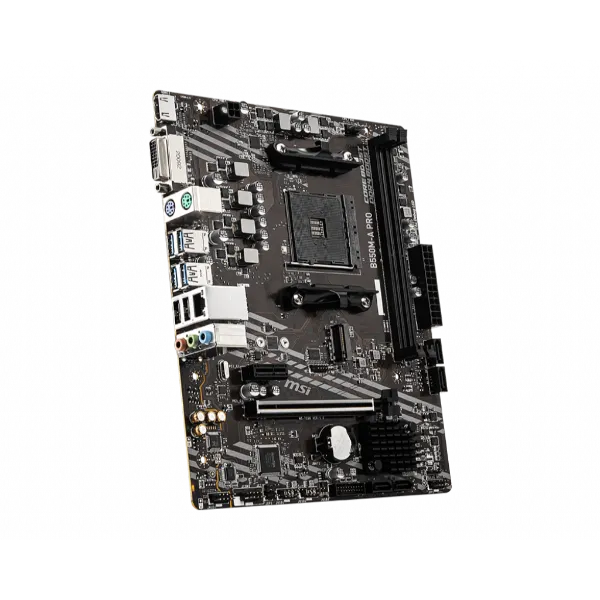

MSI B550M-A PRO ProSeries DDR4 Motherboard
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
|
Brand |
MSI |
|
CPU Socket Type |
AM4 |
|
CPU Type Support |
Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processorss |
|
Chipset |
AMD B550 |
|
Onboard Video Chipset |
CPU with integrated graphic |
|
Number of Memory Slots |
2 (DDR4) |
|
Maximum Memory Supported |
64GB |
|
Memory Type Supported |
DDR4 |
|
Channel Supported |
Dual Channel |
|
Expansion Slots |
1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot |
|
Storage Supported |
4 x SATA 6Gb/s |
|
USB Ports |
Type A |
|
HDMI |
1 x HDMI |
|
Form Factor |
Micro ATX |
|
Power Pin |
1 x 24-pin ATX main power connector, 1 x 4-pin ATX 12V power connector |
|
INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper |
|

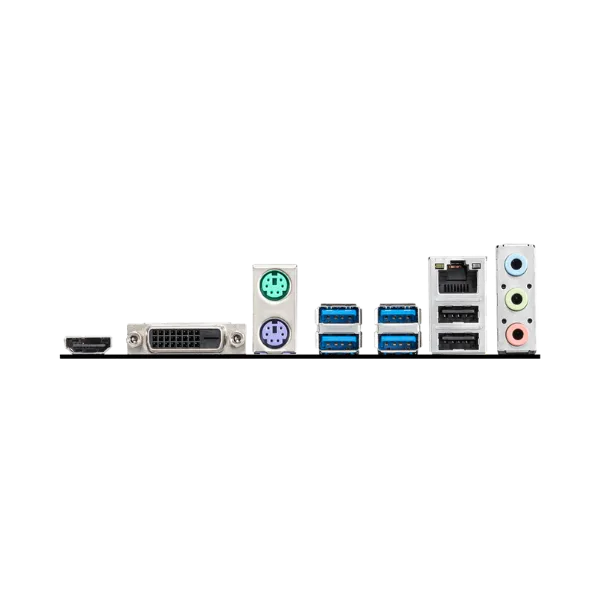

BACK PANEL PORTS |
LAN port HDMI™ DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
|
Warranty |
3 Years |
