MSI B760M BOMBER WIFI DDR5 Motherboard
-
- Supports 12th/13th/14th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
-
- Supports DDR5 Memory, Dual Channel DDR5-6400+MHz (OC)
-
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
-
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
-
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr.
-
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
-
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

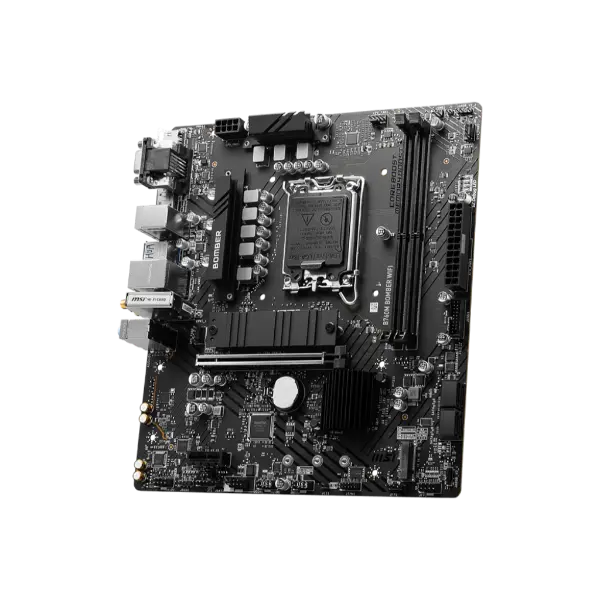

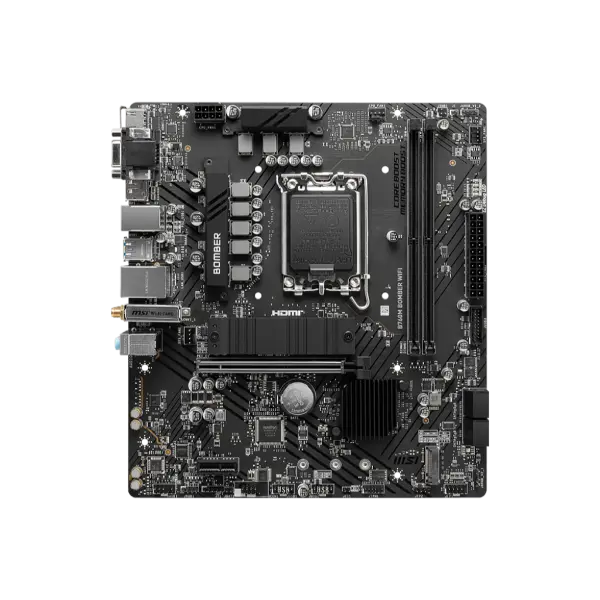

The MSI B760M BOMBER WIFI is a high-performance micro-ATX motherboard designed to cater to the needs of gamers and professionals alike. It supports the latest 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors with its LGA1700 socket. This motherboard is equipped with DDR5 memory support, allowing for speeds up to 6400+ MHz (OC) and a maximum capacity of 128 GB, ensuring smooth and efficient multitasking
Connectivity is a key feature of the B760M BOMBER WIFI, with Wi-Fi 6E and a 2.5G LAN providing fast and stable internet connections. The motherboard also supports PCIe 4.0, which is ideal for high-speed graphics cards and NVMe SSDs, ensuring rapid data transfer and enhanced gaming performance12. For storage, it offers multiple M.2 slots with M.2 Shield Frozr and SATA ports, providing ample space and protection for your storage devices
The audio experience is enhanced with Audio Boost, delivering studio-grade sound quality for an immersive gaming experience. Additionally, the motherboard features a robust thermal solution, including an extended heatsink design, which helps maintain optimal temperatures even under heavy loads
Brand |
MSI |
Form Factor |
mATX |
Compaitability |
Intel |
Chipset |
Intel B760 |
Number of Memory Slots |
4x DDR5 memory slots, support up to 128GB |
Maximum Memory Supported |
128 GB |
Memory Type Supported |
DDR5 |
Channel Supported |
Dual Channel |
HDMI |
1 x HDMI |
INTERNAL IO |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
BACK PANEL PORTS |

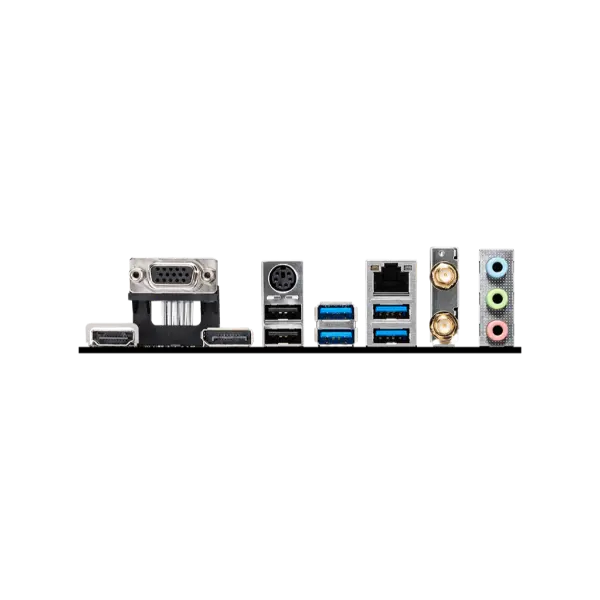

HDMI™ VGA DisplayPort Keyboard / Mouse 2.5G LAN Wi-Fi / Bluetooth Audio Connectors USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) |
OS Supported |
Windows 10 64-bit, Windows® 11 64-bit |
Warranty |
3 Years |
