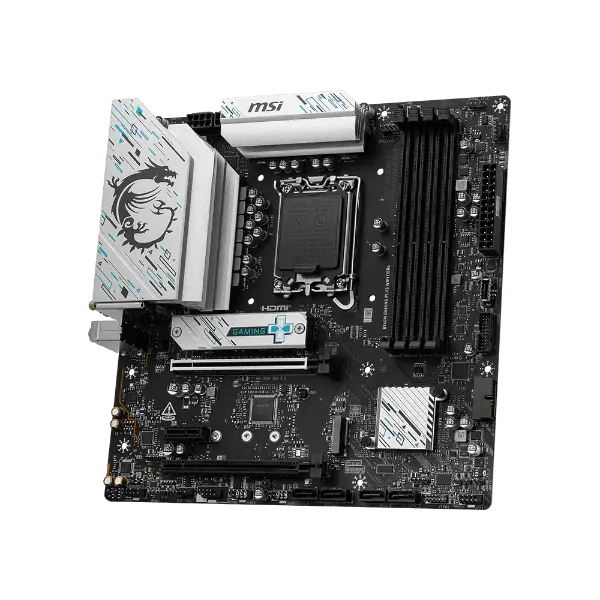

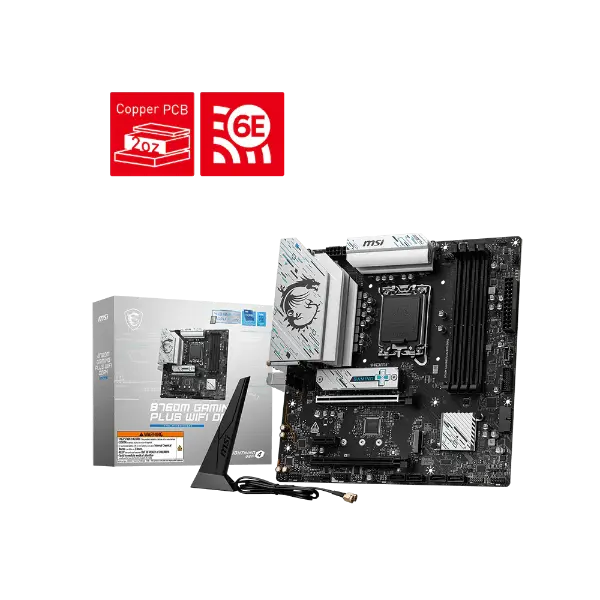

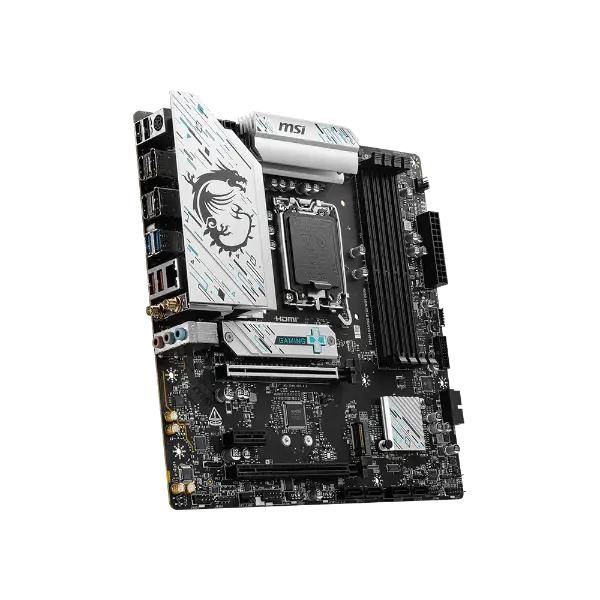

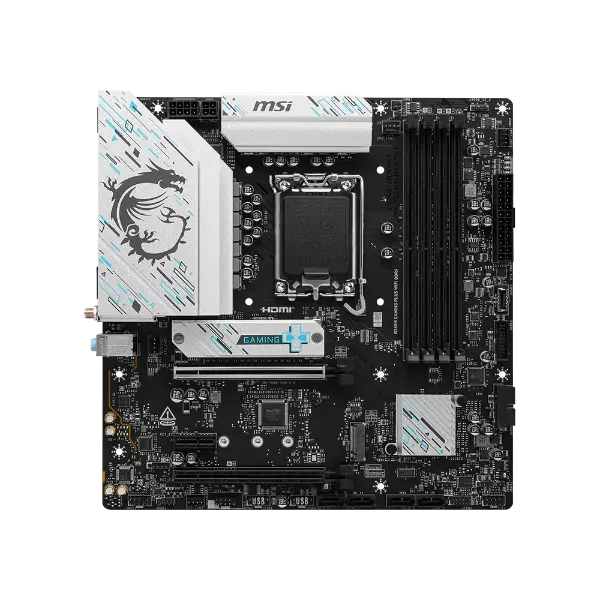

MSI B760M GAMING PLUS WIFI DDR4 Motherboard
The B760M GAMING PLUS WIFI DDR4 is crafted to offer extensive connectivity, versatile tools, and a convenient Wi-Fi solution for gamers seeking a comprehensive experience. Featuring 2.5G LAN, Wi-Fi 6E, DDR4 support, PCIe 4.0 capabilities, and dual M.2 connectors, it is optimized for Intel® Core 14th /13th /12th Gen processors.
Features :
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5 Solution
The latest Gen 5 M.2 solution with up to 128GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Specifications:
| Model Number | B760M GAMING PLUS WIFI DDR4 |
| CHIPSET | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| ONBOARD GRAPHICS | 2x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 2x PCI-E x16 slot1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | Keyboard / Mouse DisplayPort USB 5Gbps Type A ports 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 10 Gbps Type A ports Audio Connectors |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
