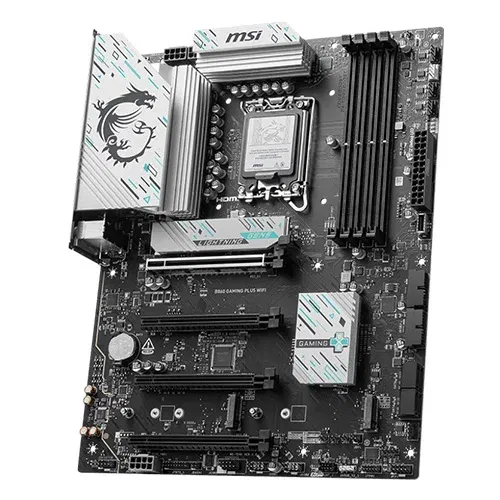

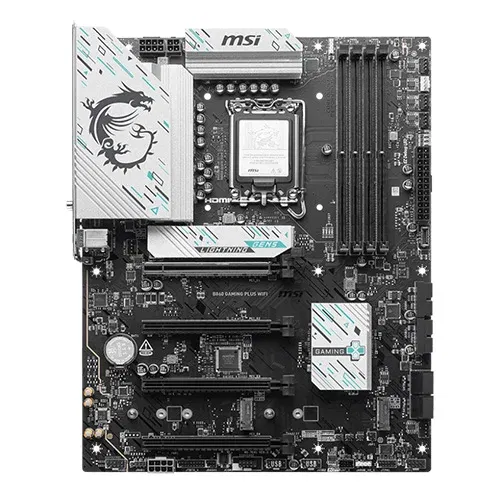

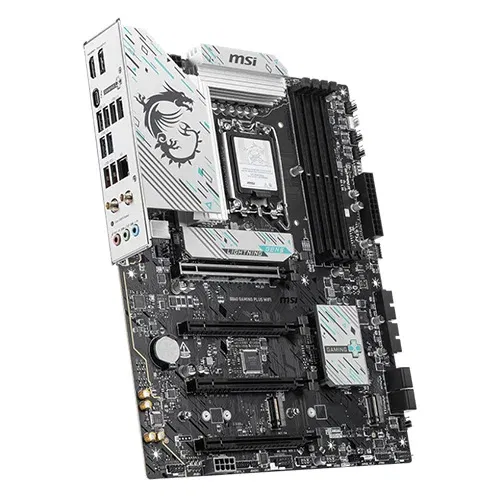

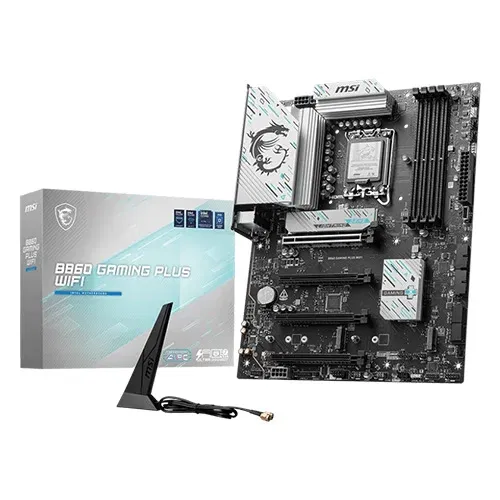

MSI B860 Gaming Plus WiFi LGA1851 ATX Motherboard
Features:
-
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
-
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
-
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
-
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
-
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
-
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
-
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
-
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
The B860 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
12+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 4-pin power connectors and exclusive Core Boost technology, the B860 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | B860 |
| Memory Speed | up to 8800+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit Brand Website. |
| Graphics Port | 1x HDMI,1x DisplayPort,1x Type-C DisplayPort |
| Expansion Slots | 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

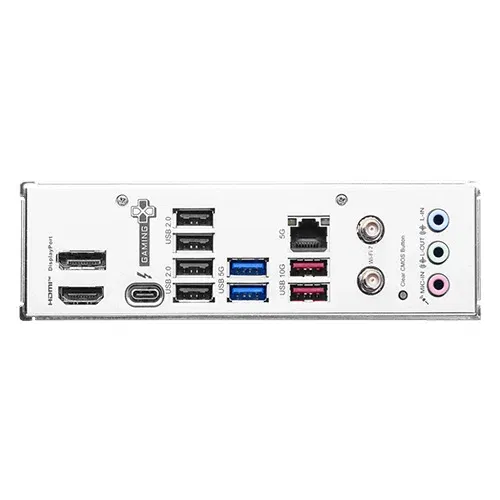

| Back Panel I/O Ports | Display Port
USB 2.0 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Thunderbolt™ 4 40Gbps (Type-C) USB 5Gbps (Type-A) USB 10Gbps (Type-A) Clear CMOS Button |
| Internal I/O Connector | 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
Brand |
MSI |
Form Factor |
ATX |
Compatibility |
INTEL |
CPU Socket Type |
LGA 1851 |
Chipset |
Intel B860 |
Memory Type |
DDR5 |
Warranty |
3 Years |
