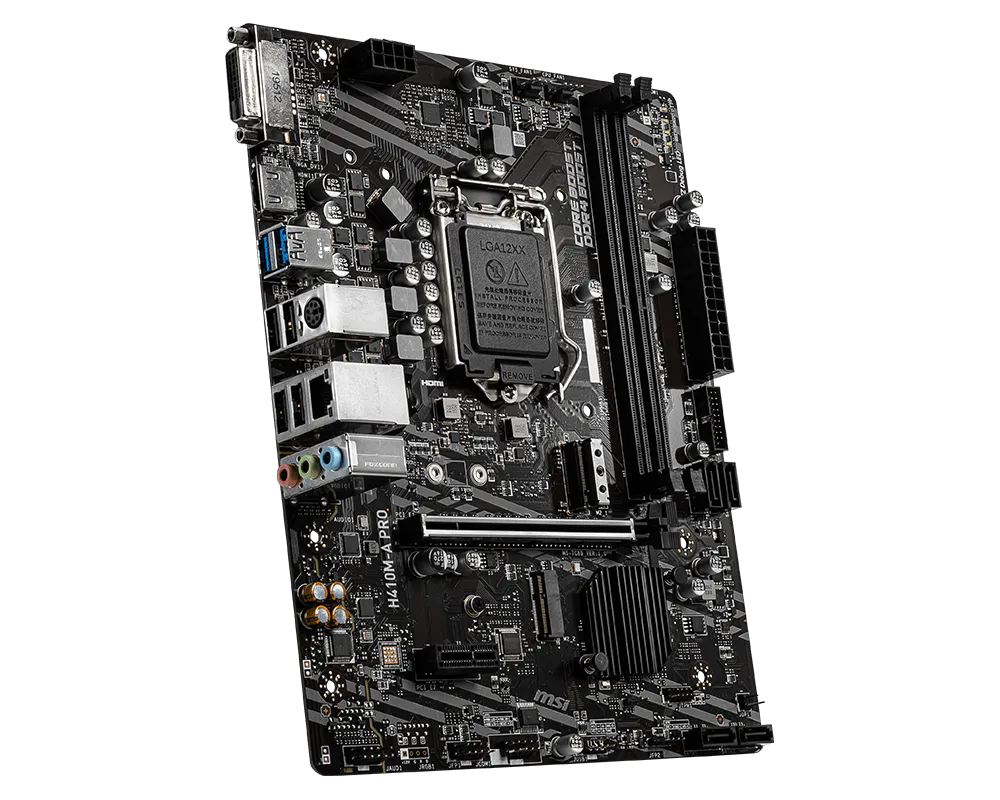

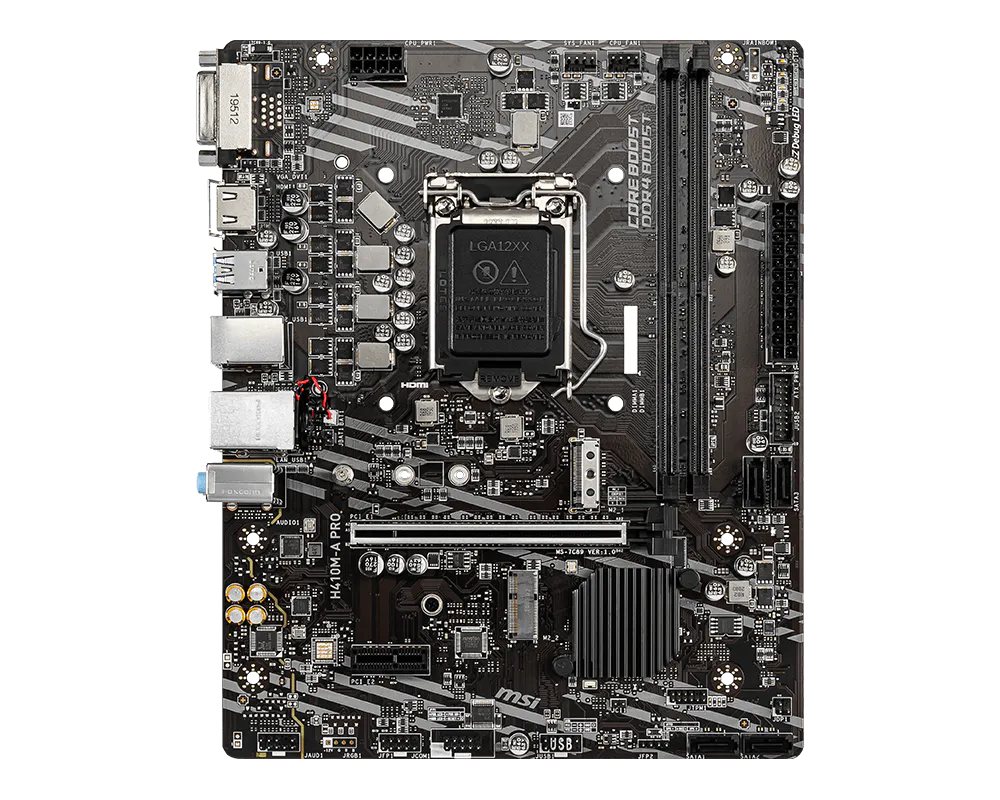

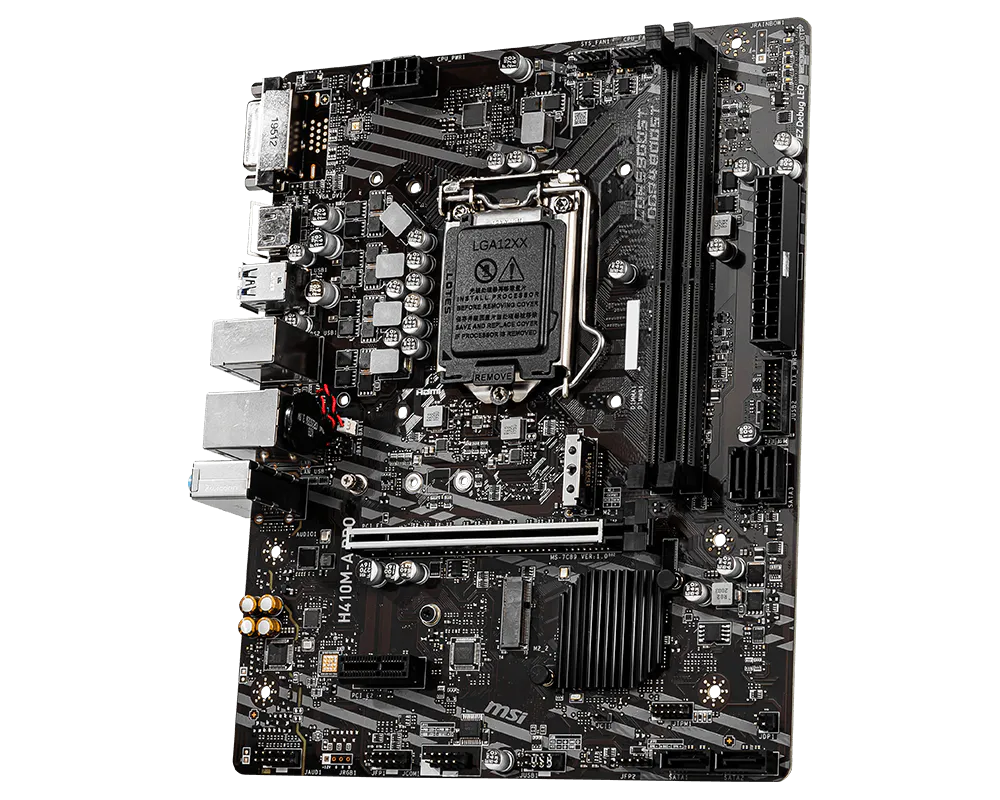

MSI H410M-A PRO DDR4 Motherboard
MSI H410M-A PRO DDR4 Motherboard PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Features :
PCI-E Steel Armor
Protecting VGA cards against bending and EMI
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability
Specifications:
| Model Number | H410M-A PRO |
| CHIPSET | INTEL H410 |
| CPU | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket |
| MEMORY | 2x DDR4 memory slots, support up to 64GB1 Intel® Core™ i7/ i9Supports up to DDR4 2933 MHz Intel® Core™ i5 and belowSupports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| AUDIO | 7.1-Channel High Definition Audio |
| STORAGE | 4x SATA 6Gb/s ports 1x M.2 slot (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| ONBOARD GRAPHICS | 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz |
| SLOT | 2x PCI-E x16 slot1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| USB | 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| INTERNAL IO | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
| LED FEATURE | 4x EZ Debug LED |

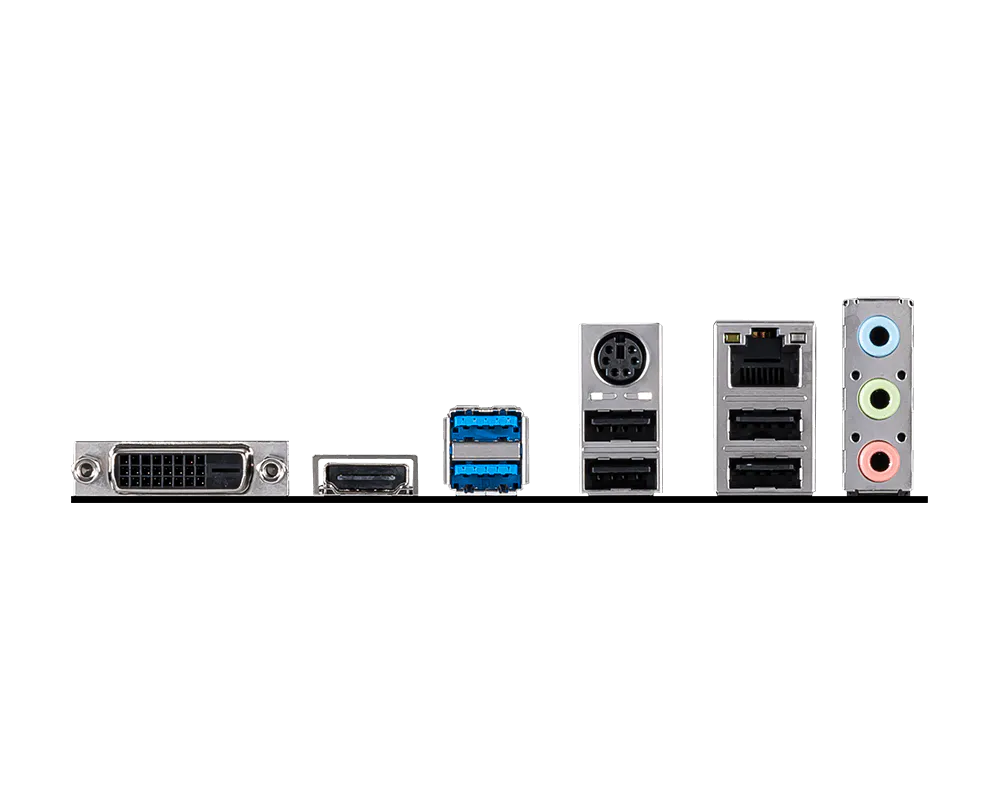

| BACK PANEL PORTS | Keyboard / Mouse LAN DVI-D HDMI™ USB 3.2 Gen 1 5Gbps Type-A USB 2.0 USB 2.0 Audio Connectors |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| PCB INFO | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
