MSI MAG B760M MORTAR WIFI II DDR5 Motherboard

About this item

  • 1x PCI-E x16 slot
  • 4x DDR5, Maximum Memory Capacity 256GB
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors

Original price was: ₹18,640.Current price is: ₹18,540.

Incl Tax

Incl Tax

Availability: In stock

Buy Now
Estimated dispatch time: 24-48 hours
Product Page Icons

Chat | +919082468103

MSI

Authorized Dealer

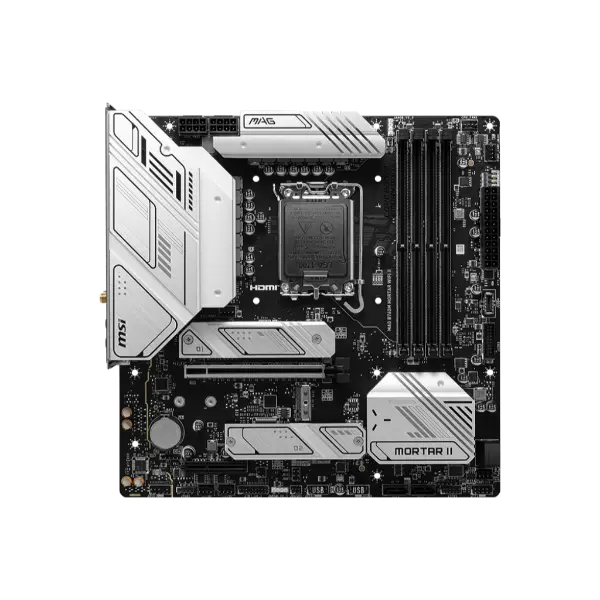

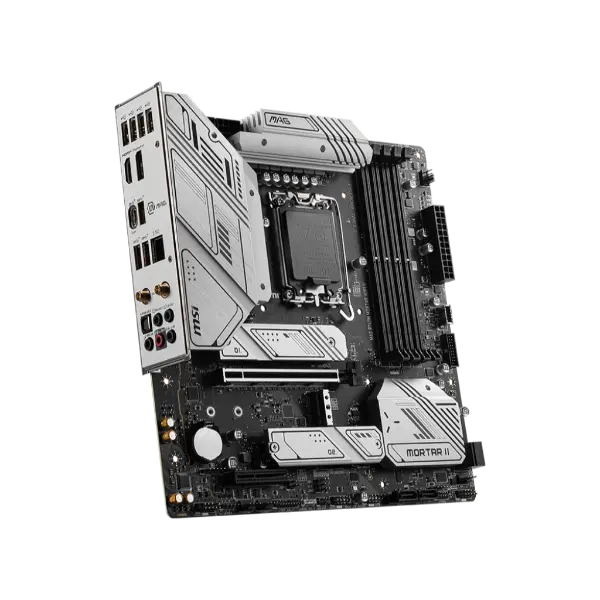

MSI MAG B760M MORTAR WIFI II DDR5 Motherboard


SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.


EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.


HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users


ATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B760M MORTAR WIFI II is ready to deliver the world class memory performance.


EASY OVERCLOCKING WITH XMP PROFILE

The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.


EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML


Brand
MSI

CPU Socket Type
14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

Chipset
Intel B760

Number of Memory Slots
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Maximum Memory Supported
256GB

Channel Supported
Dual Channel

Expansion Slots
1x PCI-E x16 slot

Storage Supported
4x SATA 6G

HDMI
1 x HDMI

INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
1x USB4 card connector (JTBT_U4_1, supports RTD3)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

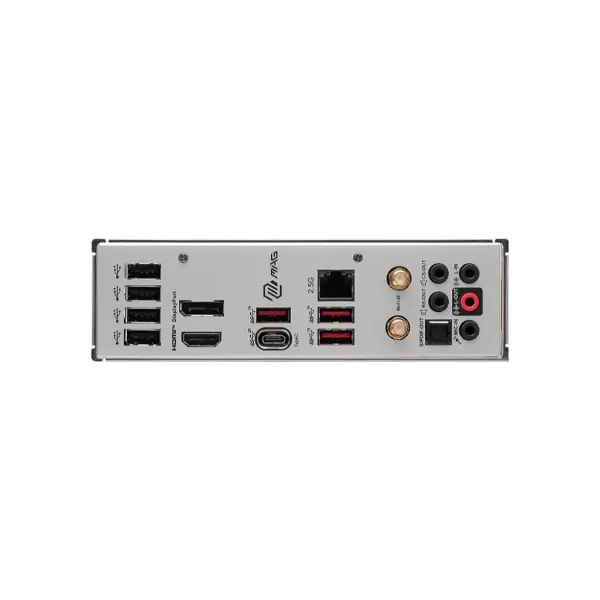

BACK PANEL PORTS
DisplayPort 1.4
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI™ 2.1 Port
USB 3.2 Gen 2×2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A

OS Supported
Support for Windows® 11 64-bit, Windows® 10 64-bit

Warranty
3 Years
Brand

MSI

Form Factor

mATX

Compaitability

Intel

CPU Type Support

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

CPU Socket

Intel LGA1700

Chipset

Intel B760

Memory Type

DDR5

Warranty

3 Years
