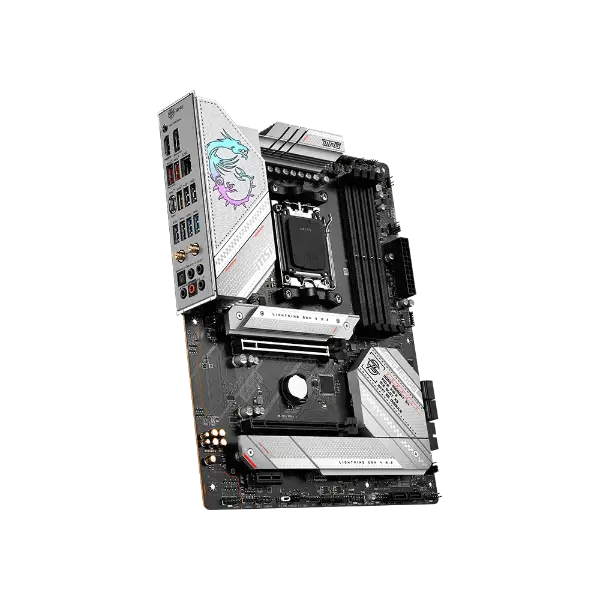

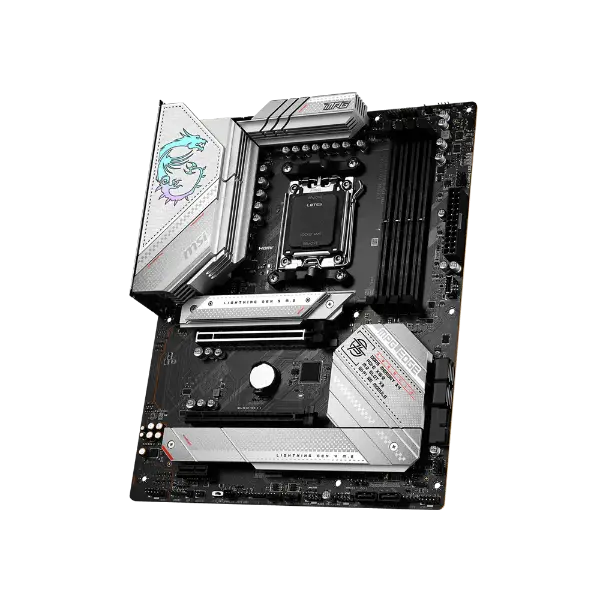

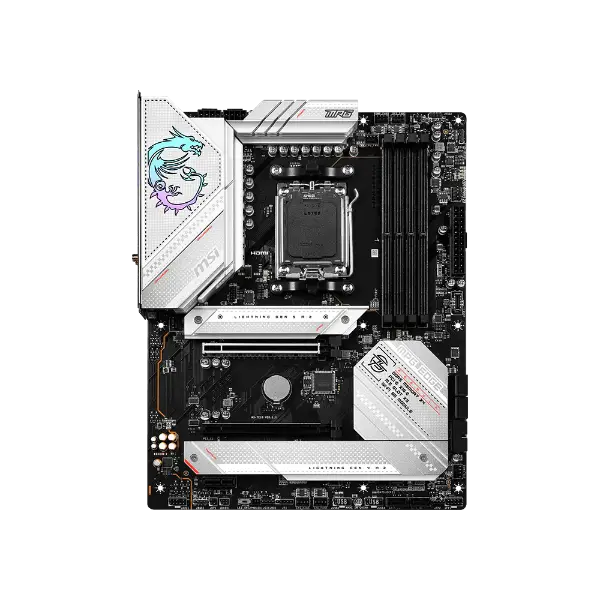

MSI MPG B650 EDGE WIFI Motherboard
MPG B650 EDGE WIFI
MSI MPG B650 EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
Features :
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Lightning Gen 5 Solution
The latest Gen 5 M.2 solution with up to 128GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Specifications:
| Model Number | MPG B650 EDGE WIFI |
| CHIPSET | AMD B650 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz 1DPC 2R Max speed up to 6400+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
| AUDIO | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
| STORAGE | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4 HBR3, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 2x PCI-E x16 slot Supports x16/x2 (For Ryzen™ 9000/ 7000 Series processors) Supports x8/x2 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports x4/x2 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ LED Control switch |

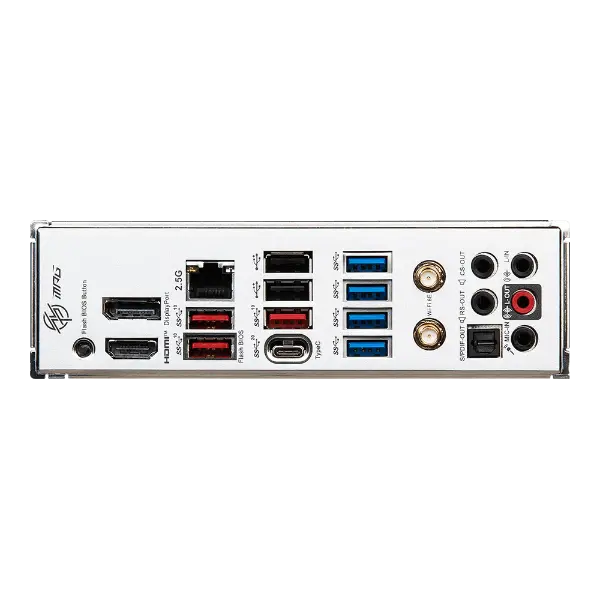

| BACK PANEL PORTS | Display Port 2.5G LAN USB 2.0 (Type-A) Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 10Gbps (Type-A) USB 20Gbps (Type-C) USB 5Gbps (Type-A) Optical S/PDIF Out |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
