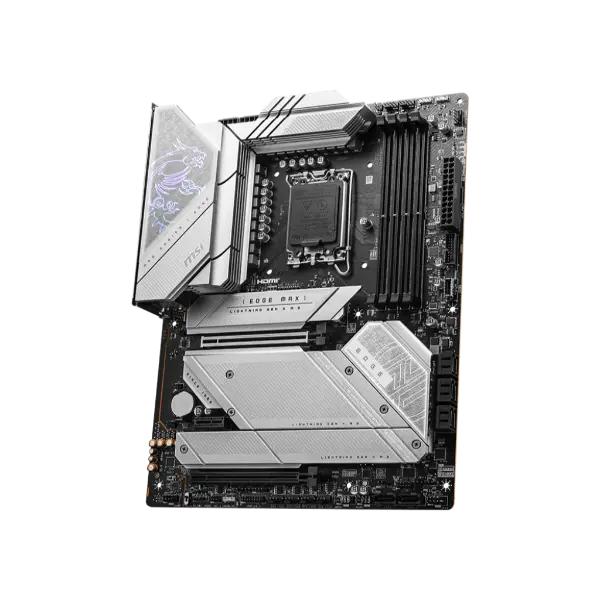

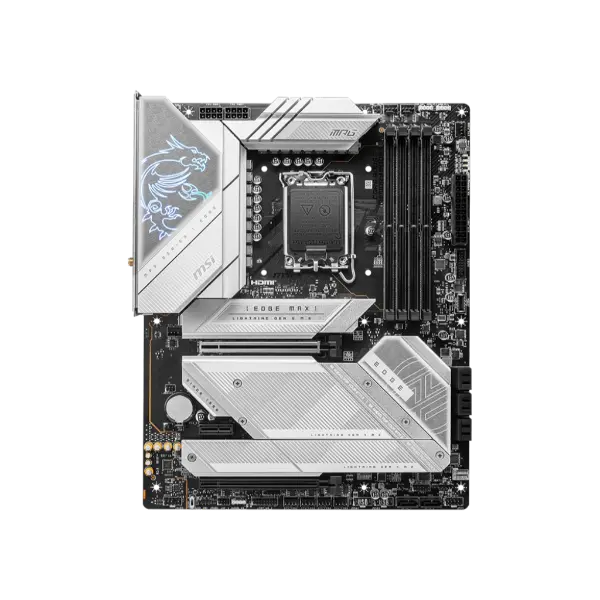

MSI MPG Z790 EDGE TI MAX WIFI DDR5 Motherboard
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
14+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 14+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, Z790 GAMING PRO WIFI is ready for the challenge of high-end processors
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
FAST AND FUTURE-READY STORAGE
Z790 GAMING WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, Z790 GAMING PRO WIFI is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Brand |
MSI |
Memory Support |
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
CPU Socket Type |
14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
Chipset |
Intel Z790 |
Number of Memory Slots |
4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
Maximum Memory Supported |
192 GB |
Channel Supported |
Dual Channel |
Expansion Slots |
2x PCI-E x16 slot |
Storage Supported |
8x SATA 6Gb/s |
HDMI |
1 x HDMI |
INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x ARGB+FAN Header (JAF_1) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

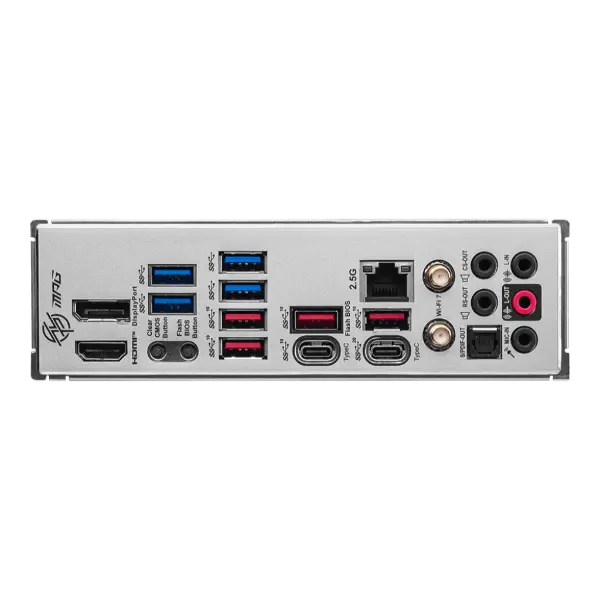

BACK PANEL PORTS |
Display Port USB 3.2 Gen 1 5 Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) 2.5G LAN Audio Connectors HDMI™ Clear CMOS Flash BIOS USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2×2 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out |
OS Supported |
Windows® 10 64-bit, Windows® 11 64-bit |
Warranty |
3 Years |
