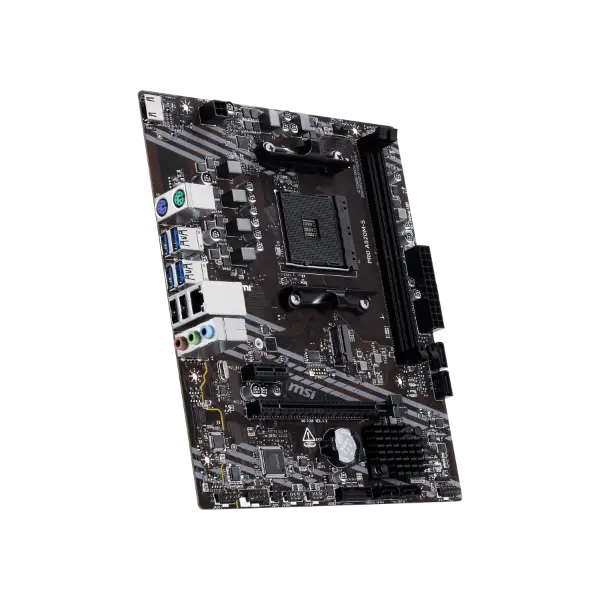

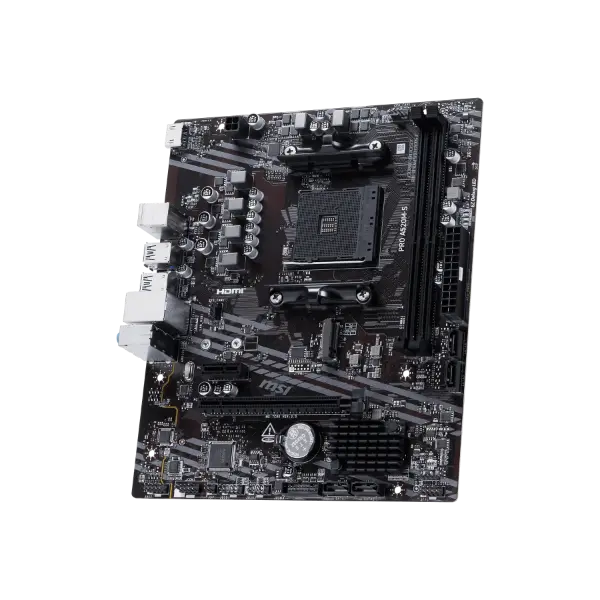

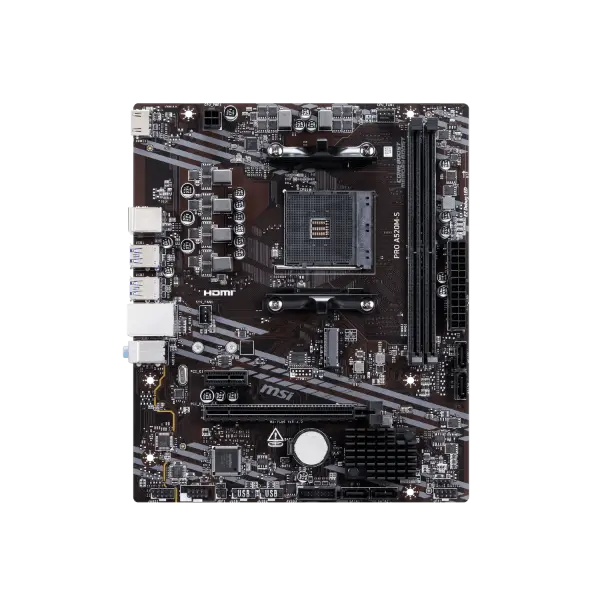

MSI PRO A520M-S Motherboard
PRO A520M-S is engineered with PCIe 3.0 M.2, USB 5Gbps, and HDMI™ 1.4, ready for the AMD Ryzen™ 5000 series processors.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Specifications:
| Model Number | PRO A520M-S |
| CHIPSET | AMD A520 |
| CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 |
| MEMORY | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Ryzen™ 5000 Series Processors max. overclocking: 1DPC 1R Max speed up to 4600+ MT/s 1DPC 2R Max speed up to 3866+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode The DIMM slots on this motherboard have double-sided latches. Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| STORAGE | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G |
| ONBOARD GRAPHICS | 1x HDMI™Support HDMITM 1.4, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) *The supported specification depends on installed processor. |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
| LAN | Realtek® RTL8111H 1Gbps LAN |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |

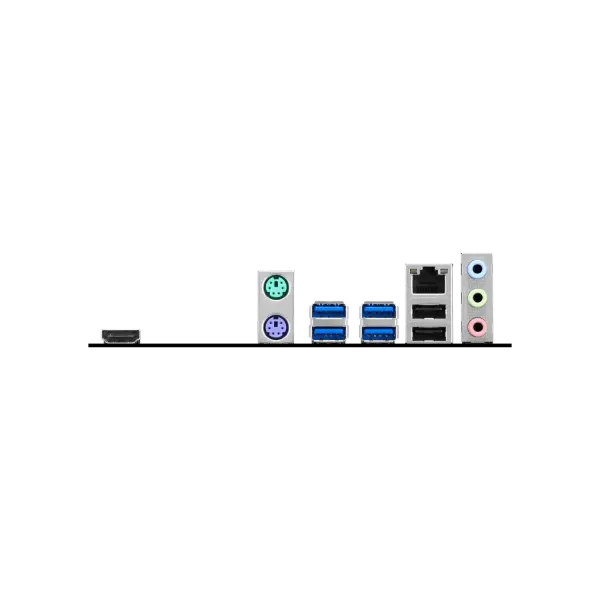

| BACK PANEL PORTS | HDMI™ Keyboard / Mouse USB 5Gbps Type-A LAN Port Audio connectors USB 2.0 |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB INFO | mATX 200mmx236mm |
| Warranty | 3 Years |
