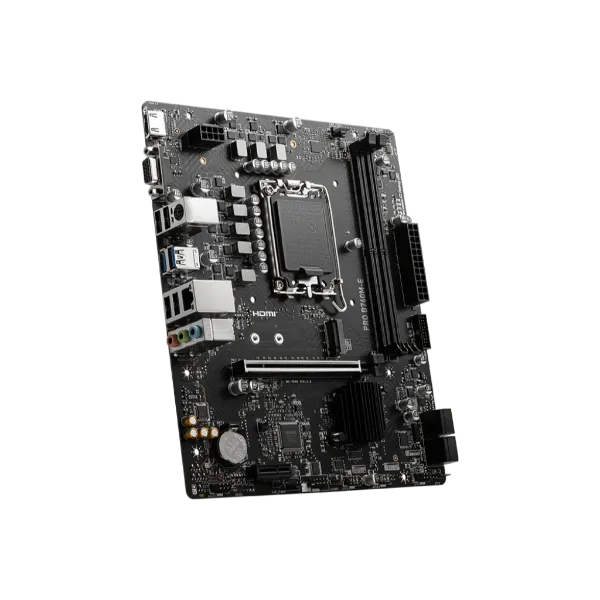

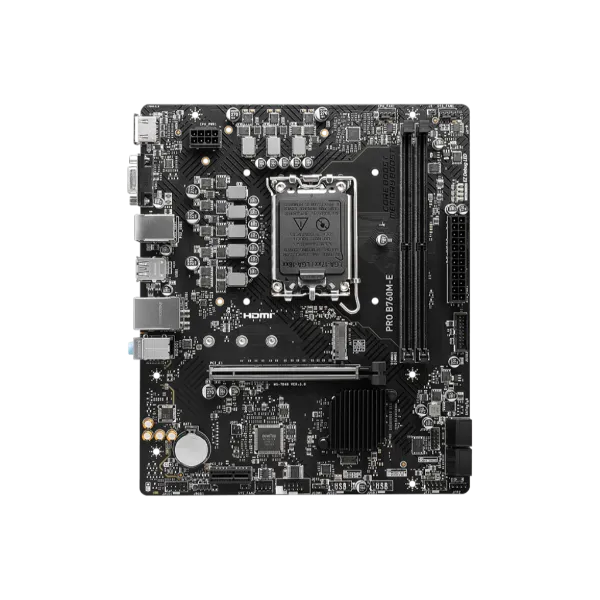

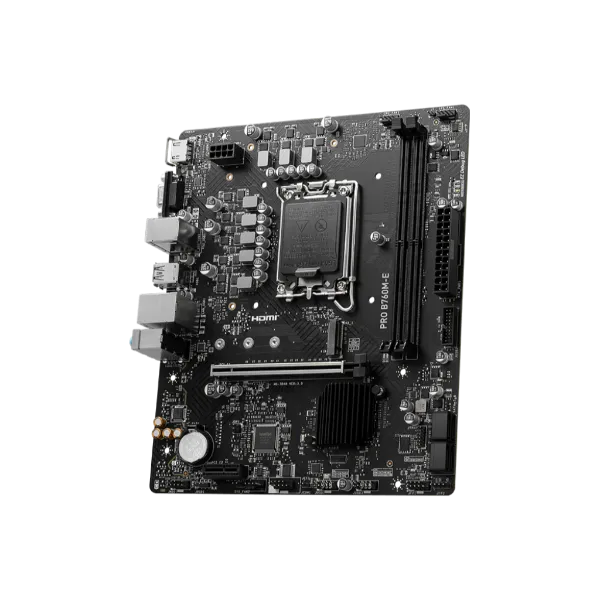

MSI PRO B760M-E DDR5 Motherboard
HARDWARE
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
PERFORMANCE
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Brand |
MSI |
Compaitability |
Intel |
CPU Socket Type |
LGA 1700 |
CPU Type Support |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
Chipset |
Intel B760 |
Number of Memory Slots |
4x DDR5 memory slots, support up to 128GB |
Maximum Memory Supported |
128GB |
Memory Type Supported |
1R 6400 |
Channel Supported |
Dual Channel |
Expansion Slots |
1x PCI-E x16 slot |
Storage Supported |
1x M.2 slot |
USB Ports |
Type A |
Audio Type Supported |
7.1-Channel High Definition Audio |
HDMI |
1 x HDMI |
Form Factor |
Micro ATX |
LED Lighting |
RGB |
I/O (Internal) |
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
I/O (Rear) |
HDMI™ VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0 |
Warranty |
3 Years |
