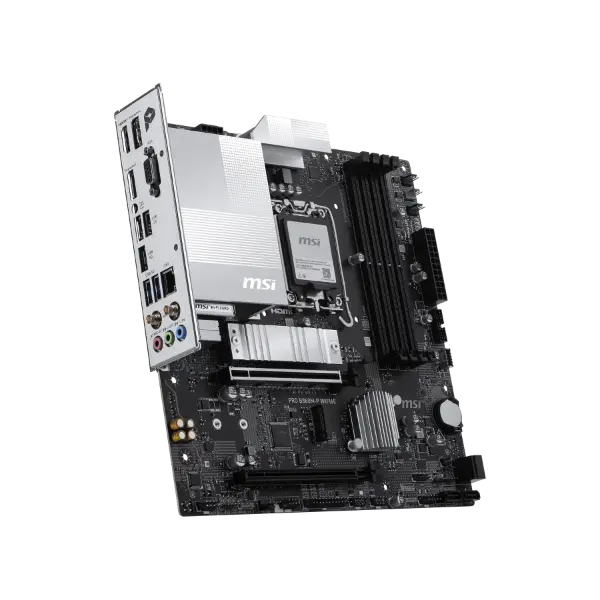

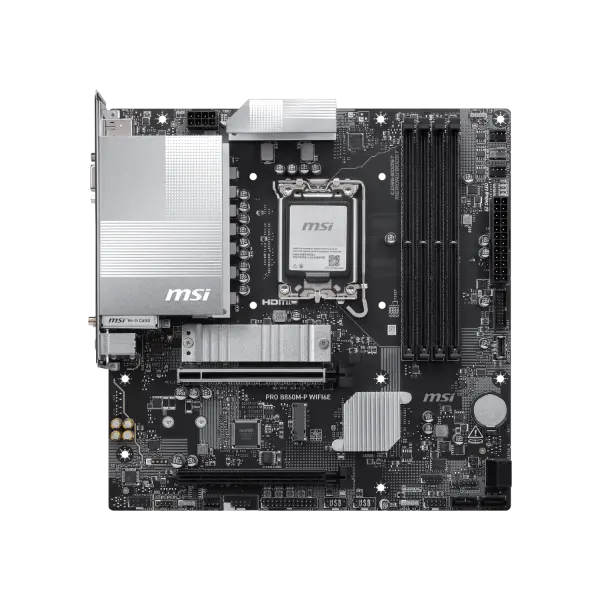

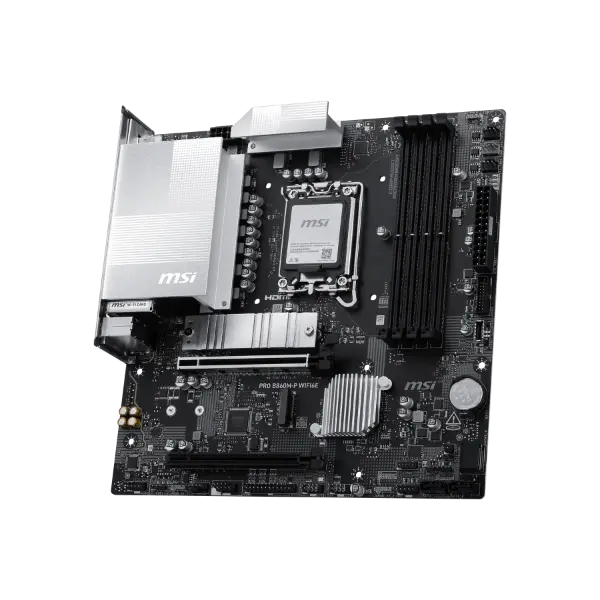

MSI PRO B860M-P WIFI6E Motherboard
PRO B860M-P WIFI6E
PRO B860M-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 2.5G LAN, and PCIe 5.0 M.2, ready for the Intel® Core™ Ultra processors.
Features :
Lightning Gen 5 Solution
The latest Gen 5 M.2 solution with up to 128GB/s bandwidth for maximum transfer speed.
EZ Antenna
EZ Antenna makes the process effortless by simply attachingfasteners to the motherboard without rotation.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Wi-Fi 6E
Supports 6GHz spectrum, MU-MIMO and BSS color technology,delivering speeds up to 2400Mbps.
2.5G LAN
Onboard 2.5G LAN with AI LAN Manager, ensuring a smooth and optimized online experience.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Specifications:
| Model Number | PRO B860M-P WIFI6E |
| CHIPSET | INTEL B860 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| AUDIO | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz* 2x DisplayPort Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS | DisplayPort VGA USB 2.0 USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ DisplayPort Clear CMOS Button USB 5Gbps Type-A |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB INFO | mATX 243.84mmx243.84mm |
| Warranty | 3 Years |
