SaleSave -33%

MSI Pro H610M-E Micro Atx DDR5 Motherboard (PRO-H610M-E)

About this item

Original price was: ₹10,620.Current price is: ₹7,080.

Incl Tax

Incl Tax

Availability: In stock

Buy Now
Estimated dispatch time: 24-48 hours
Product Page Icons

Chat | +919082468103

Authorized Dealer

MSI Pro H610M-E Micro Atx DDR5 Motherboard (PRO-H610M-E)


Msi

Pro H610M-E Ddr5 is a mATX

motherboard

with DDR5, PCIe 4.0, M.2 slots, HDMI, VGA, USB 3.2 Gen 1 5Gbps Type-A, RTL8111H Gigabit LAN


Features:



    • Support Intel

      ®

      Core™ 14th/ 13th/ 12th Gen Processors, Intel

      ®

      Pentium

      ®

      Gold and Celeron

      ®

      Processors for LGA 1700 socket



    • Supports DDR5 Memory, up to 5600(MAX) MHz



    • Core Boost : With premium layout and digital power design to support more cores and provide better performance



    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility



    • Lightning Fast Experience: PCIe 4.0



    • Audio Boost: Reward your ears with studio grade sound quality



    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.




Specifications:



Chipset INTEL H610
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
    • 2x DDR5, Maximum Memory Capacity 96GB



    • Memory Support DDR5 5600 MHz (by JEDEC & POR)



    • Supports Intel® XMP 3.0 OC



    • Supports Dual-Controller Dual-Channel mode



    • Supports non-ECC, un-buffered memory





Onboard Graphics
    • 1x HDMI



    • Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz



    • 1x VGA



    • Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz





Slot
    • 1x PCI-E x16 slot



    • 1x PCI-E x1 slot



    • PCI_E1 Gen PCIe 4.0 supports up to (From CPU)



    • PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)





Storage
    • 1x M.2



    • M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices



    • 4x SATA 6G





USB
    • 4x USB 2.0 (Rear)



    • 4x USB 2.0 (Front)



    • 2x USB 3.2 Gen1 Type A (Rear)



    • 2x USB 3.2 Gen1 Type A (Front)





LAN Realtek® RTL8111H Gigabit LAN
Audio
    • Realtek® ALC897 Codec



    • 7.1-Channel High Definition Audio





Internal IO
    • 1x Power Connector(ATX_PWR)



    • 1x Power Connector(CPU_PWR)



    • 1x CPU Fan



    • 2x System Fan



    • 2x Front Panel (JFP)



    • 1x Chassis Intrusion (JCI)



    • 1x Front Audio (JAUD)



    • 1x Com Port (JCOM)



    • 1x RGB LED connector(JRGB)



    • 1x TPM pin header(Support TPM 2.0)



    • 4x USB 2.0 ports



    • 2x USB 3.2 Gen1 Type A ports





LED FEATURE 4x EZ Debug LED

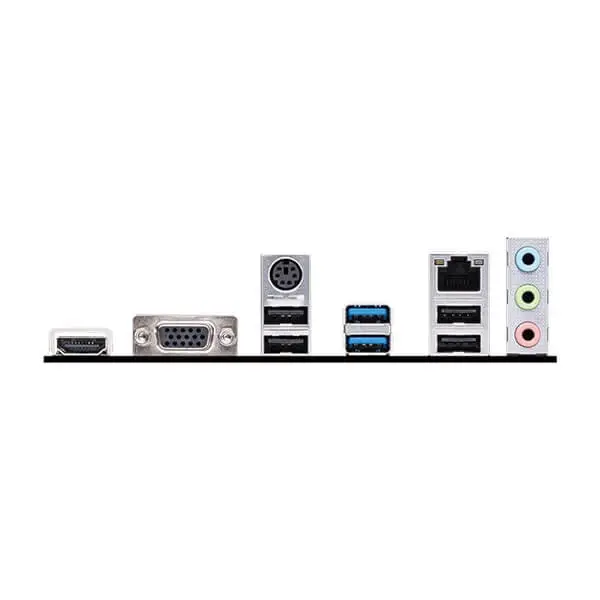

BACK PANEL PORTS
    • HDMI



    • VGA



    • Keyboard / Mouse



    • USB 3.2 Gen 1 5Gbps (Type-A)



    • LAN port



    • Audio Connectors



    • USB 2.0



    • USB 2.0





OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX

200mmx236.16mm

Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.




Brand
MSI

Form Factor
ATX

Compatibility
INTEL

CPU Socket Type
LGA 1700

Chipset
Intel H610

Memory Type
DDR5

Warranty
3 Years
Brand

MSI

Form Factor

ATX

Compaitability

Intel

CPU Type Support

Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

CPU Socket

Intel LGA 1700

Chipset

Intel H610

Memory Type

DDR5

Warranty

3 Years
