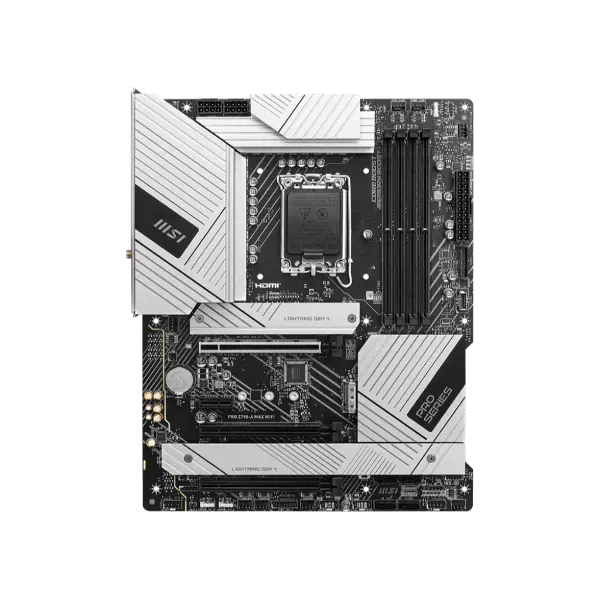

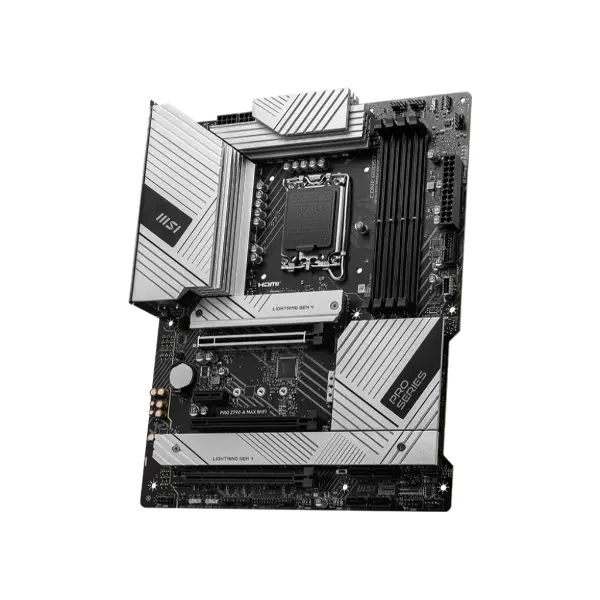

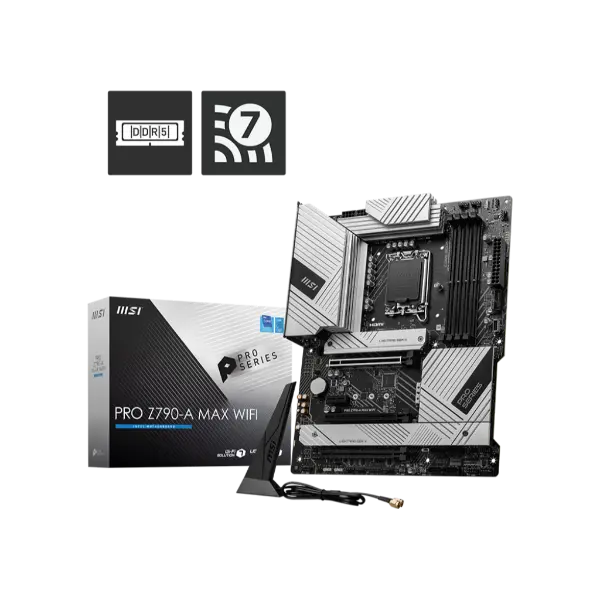

MSI PRO Z790-A MAX WIFI DDR5 Motherboard
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
16+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 16+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission
SOLID PIN DESIGN
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
|
Brand |
MSI |
|
CPU Socket Type |
14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
|
Chipset |
Intel Z790 |
|
Number of Memory Slots |
4x DDR5 UDIMM, Maximum Memory Capacity 192GB |
|
Maximum Memory Supported |
192 GB |
|
Channel Supported |
Dual Channel |
|
Expansion Slots |
3x PCI-E x16 slot |
|
Storage Supported |
6x SATA 6G port |
|
HDMI |
1 x HDMI |
|
INTERNAL I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|
BACK PANEL PORTS |

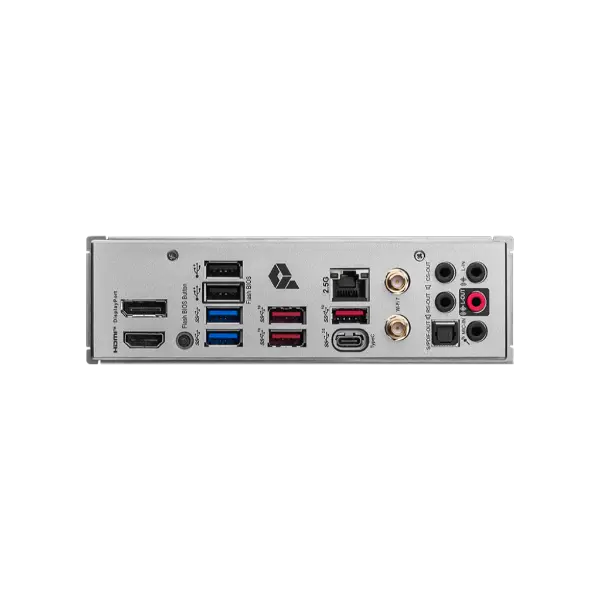

DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) S/PDIF-OUT |
|
OS Supported |
Windows® 11 64-bit |
|
Warranty |
3 Years |
