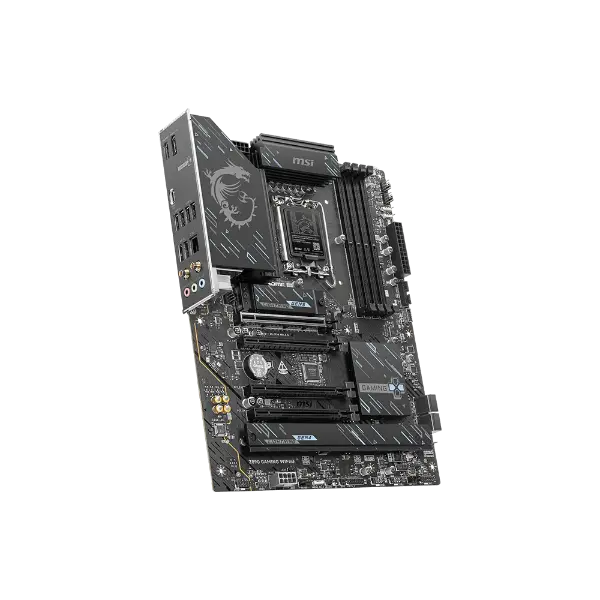

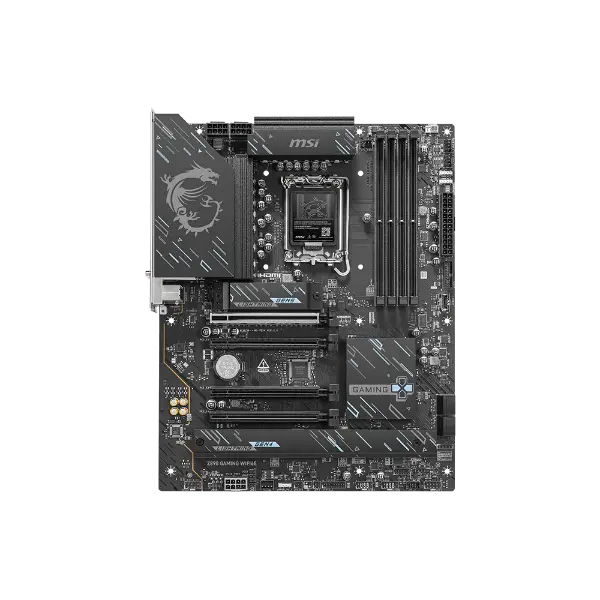

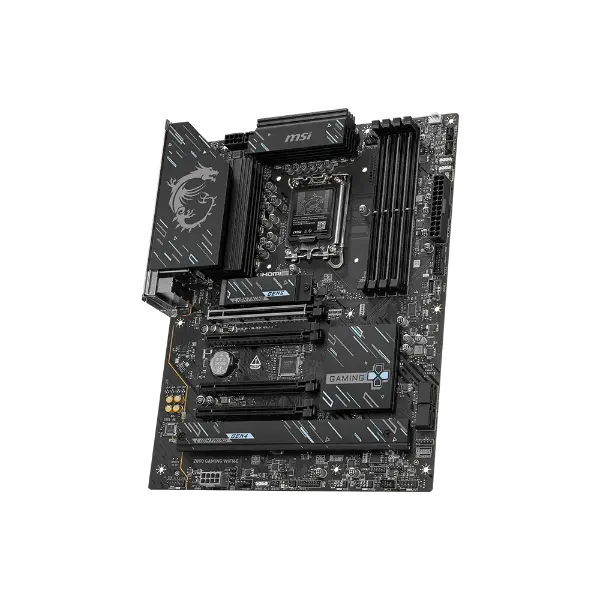

MSI Z890 GAMING WIFI6E Motherboard
Z890 GAMING WIFI6E
Z890 GAMING WIFI6E is designed with durable components to provide a great gaming experience. Designed with Wi-Fi 6E and 2.5G LAN, USB 20Gbps Type-C, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for 24/7 non-stop gaming with Intel Core Ultra processors.
Specifications:
| Model Number | Z890 GAMING WIFI6E |
| CHIPSET | INTEL Z890 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851Supports Intel® Core™ Ultra Processors (Series 2) |
| MEMORY | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: 1DPC 1R Max speed up to 8800+ MT/s 1DPC 2R Max speed up to 7200+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| STORAGE | 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| SLOT | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU) |
| USB | 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA 6GHz band support may depend on every country’s regulations and Wi-Fi 6E will be ready in Windows 11 version SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.3 support depends on Windows 11 plan. |
| INTERNAL IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 4x System Fan 1x ARGB+FAN Header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | DisplayPort USB 5Gbps Type-A ports 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 20Gbps Type-C port USB 5Gbps Type-A ports |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB INFO | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
