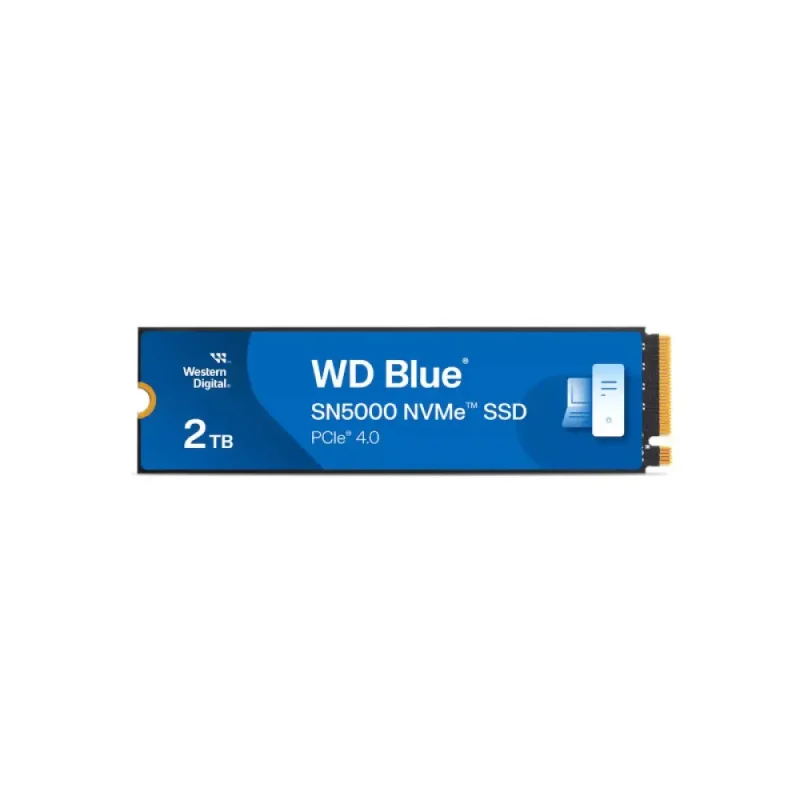

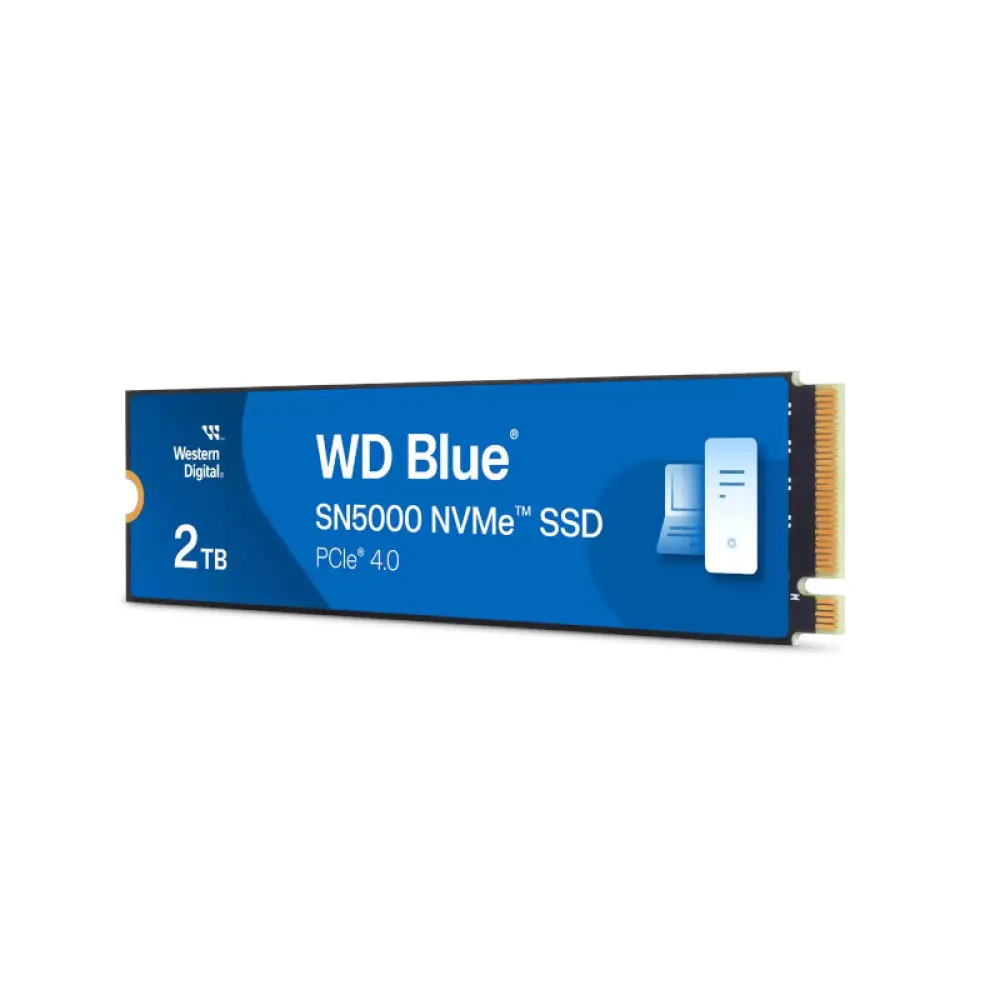

WD Blue SN5000 2TB PCIe Gen4 NVMe M.2 Internal SSD
- Up to 5,150MB/s Sequential Read speed
- Capacities of 2TB
- High Endurance up to 900TBW
- Western Digital nCache 4.0 for fast file copies
- Acroni True Image for Western Digital Data Migration Software
- 5-year limited warranty
| Specification | |
| Model Number | WDS200T4B0E |
| Interface | PCIe Gen4 16GT/s, up to 4 Lanes |
| Form Factor | M.2 2280 |
| Formatted Capacity | 2 TB |
| NAND Type | Western Digital 3D NAND TLC |
| Performance | Sequential Read (Queues = 32, Threads = 1): up to 5150 MB/s
Sequential Write (Queues = 32, Threads = 1): up to 4850 MB/s Random Read 4KB IOPS (Queues = 32, Threads = 16): up to 650K Random Write 4KB IOPS (Queues = 32, Threads = 16): up to 770K Endurance (TBW): 900 |
| Power | Average Active Power: 75mW
Sleep (PS5) (low power): 5mW Max Average power: 6.3W |
| Reliability | MTTF: 1.75M hours |
| Environmental | Operating Temperature: 32ºF to 185ºF (0ºC to 85ºC)
Non-operating Temperature: -40ºF to 185ºF (-40ºC to 85ºC) Non-Operating Vibration: 4.9 gRMS, 7-800 Hz, 3 axes Operating Vibration: 5 gRMS, 10-2000 Hz, 3 axes Shock: 1,500G @0.5 ms half sine Certifications: BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI RoHS Compliance: Yes |
| Physical Dimensions M.2 2280 | Length: 80 ± 0.15mm
Width: 22 ± 0.15mm Height: 2.38mm Weight: 5.7g + 0.5g |
| Warranty | 5 Years Limited Warranty |
| Note* | Price, feature and specifications are subject to change without notice. |
