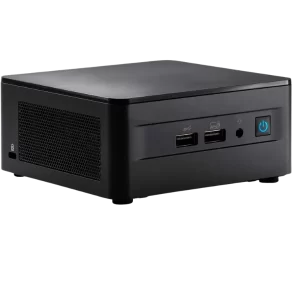

Intel NUC11PAHI7 – NUC i7 1165G7 Processor (Barebone)

Build and customize your own compact computer system to fit your productivity, entertainment, retail business, and creative needs with the Intel NUC 11 Performance kit NUC11PAHi70Z. Featuring a tall form factor that includes a pre-punched bracket for serial and other I/O ports along with a 2.5″ drive bay, this compact desktop system includes a 2.8 GHz Intel Core i7-1165G7 quad-core processor with a 4.7 GHz boost speed and integrated Iris Xe Graphics.

The system also supports up to 64GB of DDR4-3200 memory across two SO-DIMM slots, and there are two M.2 solid-state drive slots available. Up to four displays can be connected to the NUC 11 Pro through its dual HDMI 2.0b ports, Thunderbolt 4 port, and Thunderbolt 3 port. Other features include a Gigabit Ethernet port and integrated 802.11ax Wi-Fi to connect to compatible high-speed networks. There also three USB 3.2 Gen 2 Type-A ports that can transfer up to 10 Gb/s. For added flexibility, you can install either a Windows or Linux operating system on the NUC 11 Pro Kit.

11th Gen Intel Core Performance

The NUC 11 Pro includes a 2.8 GHz Intel Core i7-1165G7 quad-core processor that has maximum boost speed of 4.7 GHz and integrated Iris Xe Graphics to quickly run a variety of applications and games.

M.2 Expansion

One M.2 2280 PCIe 4.0 M-key slot is available alongside an M.2 2242 PCIe 3.0 B-key SATA slot for compatible solid-state storage drives.

USB Connectivity

Use the USB 2.0 port to connect a wireless keyboard and mouse adapter while reserving the three USB 3.2 Gen 2 Type-A ports for compatible high-speed peripherals such as external storage drives to transfer up to 10 Gb/s.

Thunderbolt 3

Thunderbolt 3 are hardware interfaces that utilize the reversible USB Type-C connector. The connector also transmits data via USB4 at up to 20 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect 4K displays. Additionally, you can daisy chain up to six devices from a single Thunderbolt port.
